1000mm X/Y axis Linear rail, ball screw actuator kit
Regular price
$390.00 AUD
Regular price
Sale
$699.00 AUD
Sale price
$390.00 AUD
Couldn't load pickup availability
Max vertical : 15Kg
Max Horizontal : 25kg
Max Vertical Full speed: 40~90mm/s
Max Horizontal Full speed: 80~230mm/s
Position Accuracy: 0.02mm
Max Thrust:188~471
Package include:
1X X/Y axis Full kit and pre drilled, tap and assembled ready to use Linear rail, ball screw actuator .
Some information kit accessories :
1X MGN12 linear rail with linear block
1X SFU 1605 ball screw with nuts and housing block
1X NEMA 23 stepper motor
1X NEMA 23 stepper motor bracket
1X L shape ball screw support bracket
1X ball screw end bracket
1X fix jaw coupling to suit NEMA23 and 1605 ball screw
1X 2040 Silver slot extrusion
Mechanical Dimensions
Motor parameters
|
Model No |
Step angle |
Motor flange size |
Motor length |
Holding torque |
Current |
Resistance |
Inductance |
Rotor Inertia |
Lead wire |
|
(°) |
(mm) |
L (mm) |
( N.m) |
(A) |
( Ω) |
( mH) |
(g.cm⊃2;) |
(No.) |
|
|
57HS5417-21-500Z |
1.8 |
57 |
56 |
0.93 |
2.0 |
3.0±20% |
3.19 |
200 |
4 |

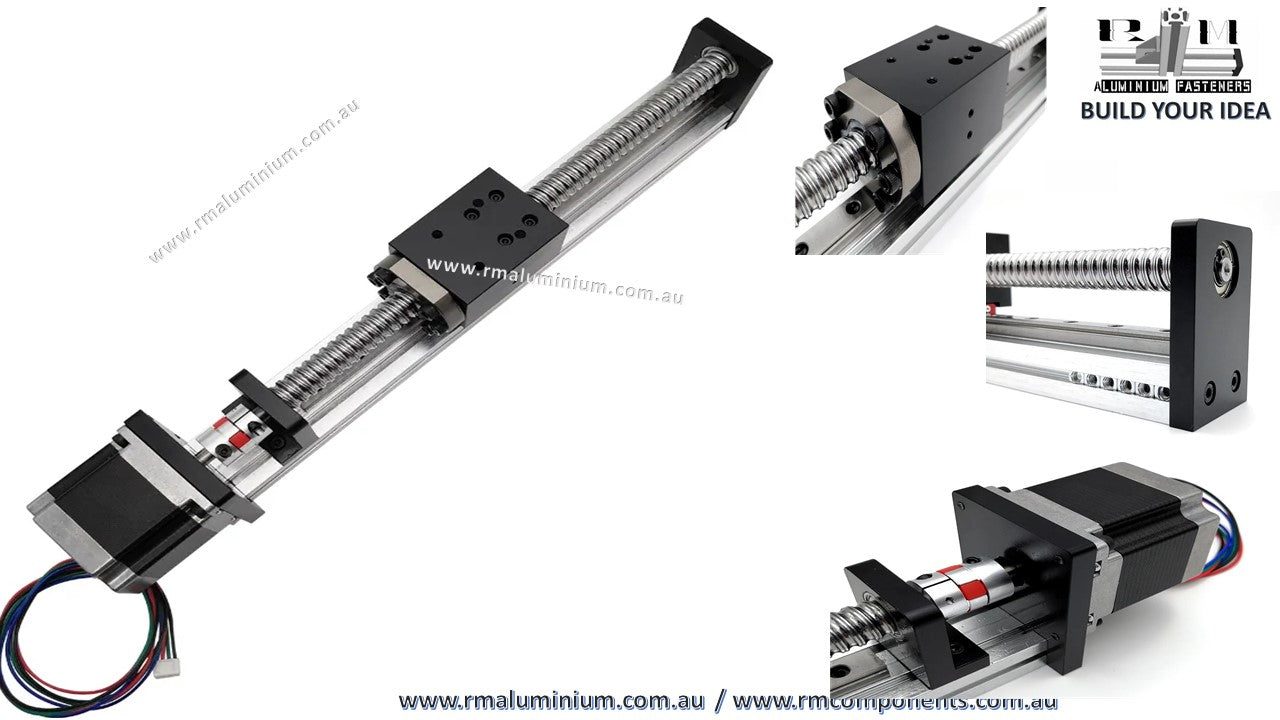

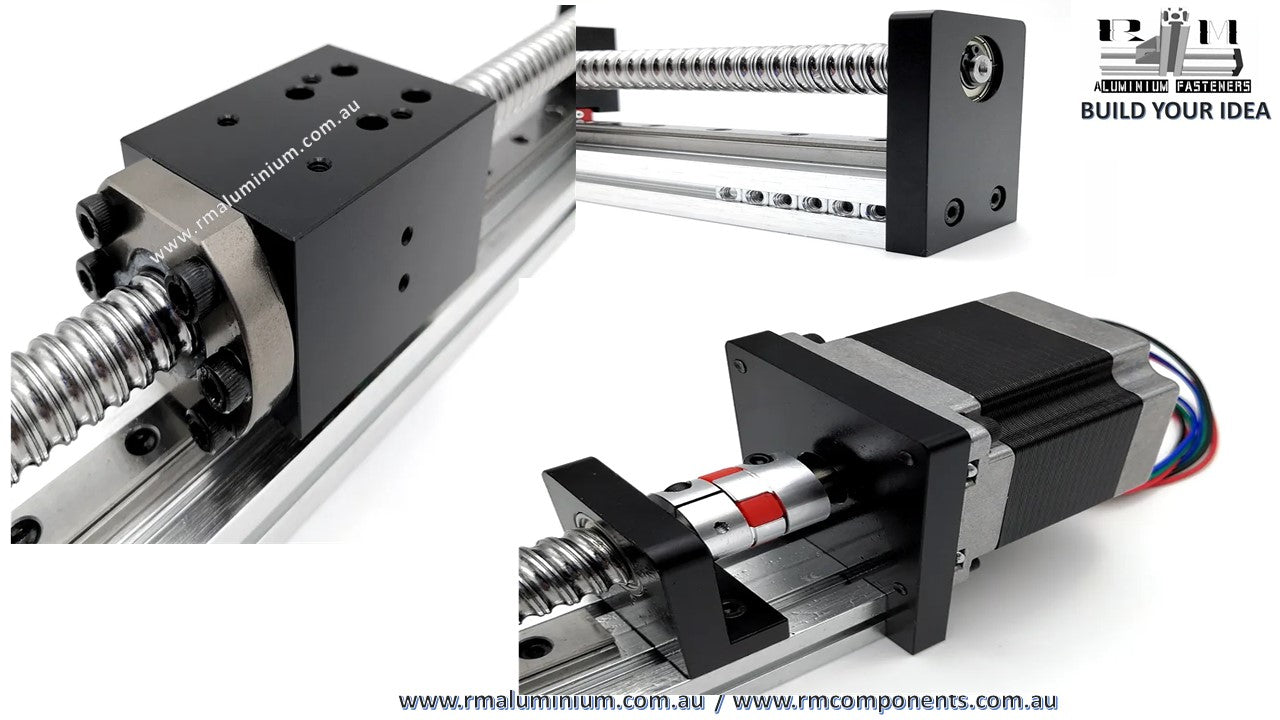

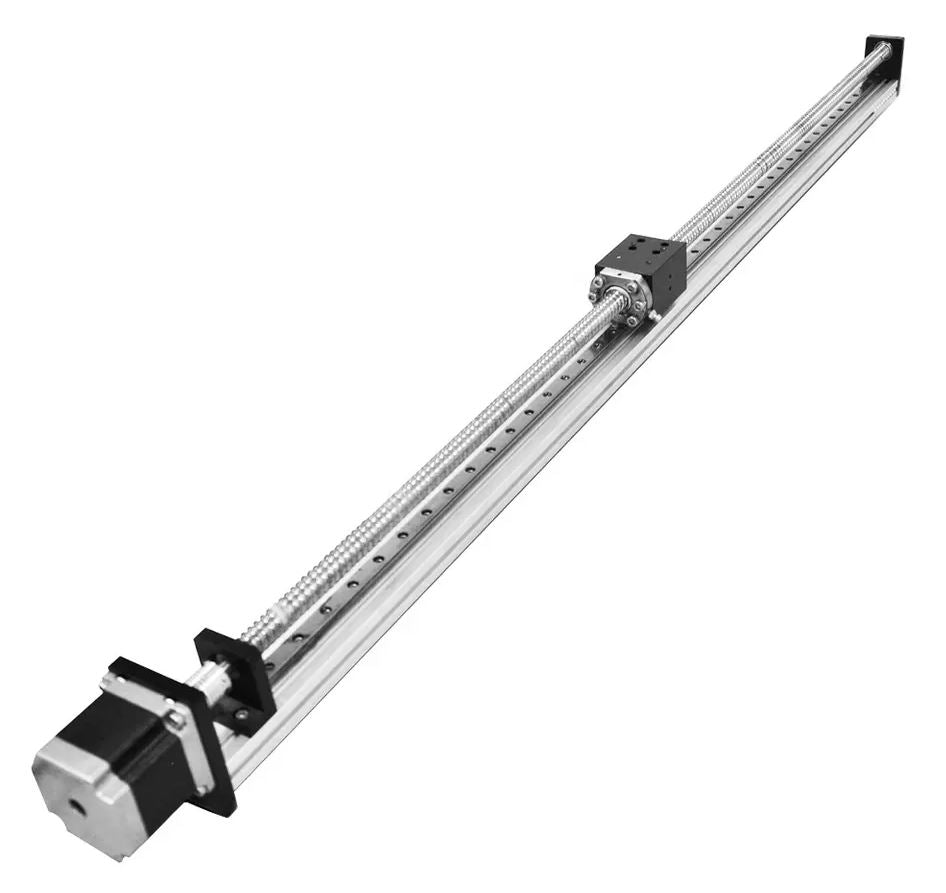

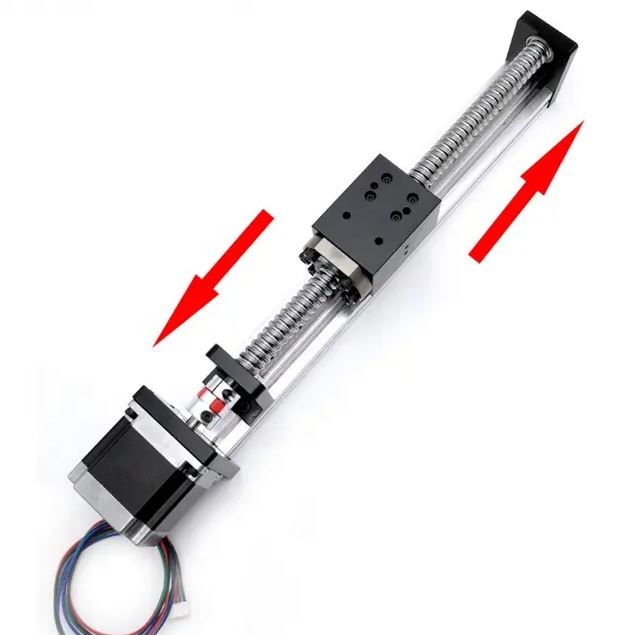

Detailed Images
if you have any question or require custom size please contact us:
