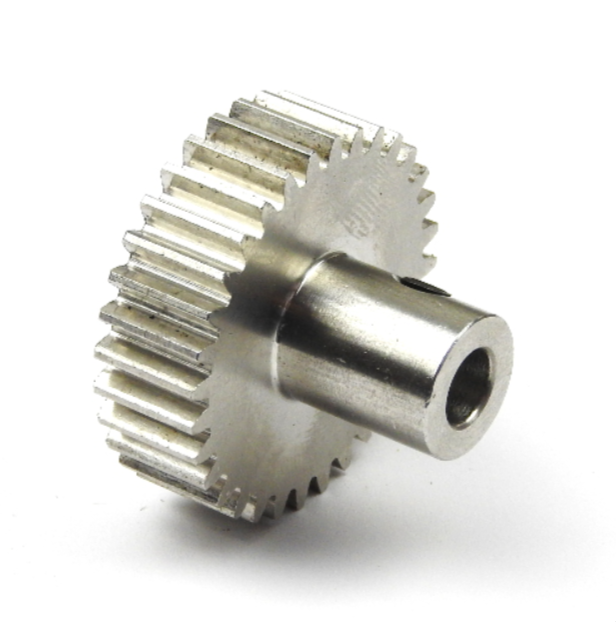

Module 1.0 Pinion Gear – 6.35mm Bore

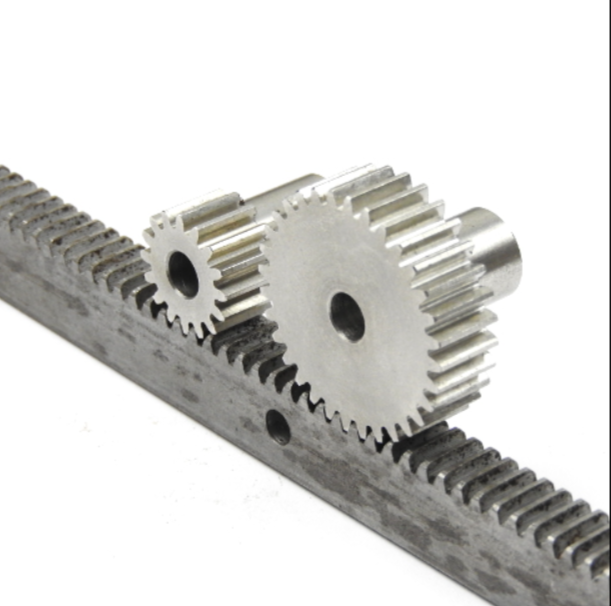

RACK AND PINION SYSTEM FOR V-SLOT!

These Gears are specially designed to work with the  Module 1.0 Gear Racks and V-Slot linear rails.

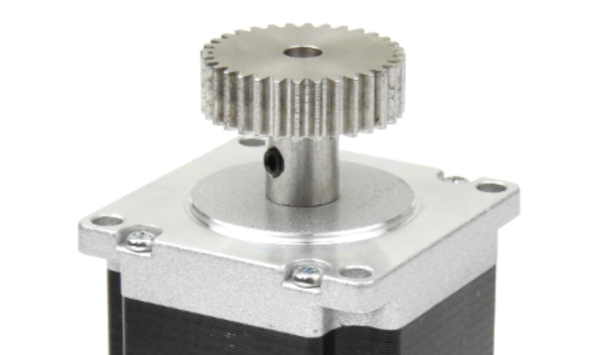

Fully compatible with our NEMA23 Stepper Motors and featuring an extra long (15mm) collar.

Specifications:

• Module 1.0
• 16/20/32 /40 Tooth
• 20° Pitch Angle
• Length: 25mm
• Set Screw: M5 x 5mm (included)
• Bore DIA: 6.35mm (compatible with our 6.35mm Shank Motors)
• Finish: Steel

Millimeters per step

Micro step       1                 2                    4                  8                         16                  32

Pules /Rev     200            400               800             1600                   3200            6400
