180 Degree Pivot Plate – 40 Series

In stock
SKU: RM4149
Regular price $22.00 AUD
No reviews

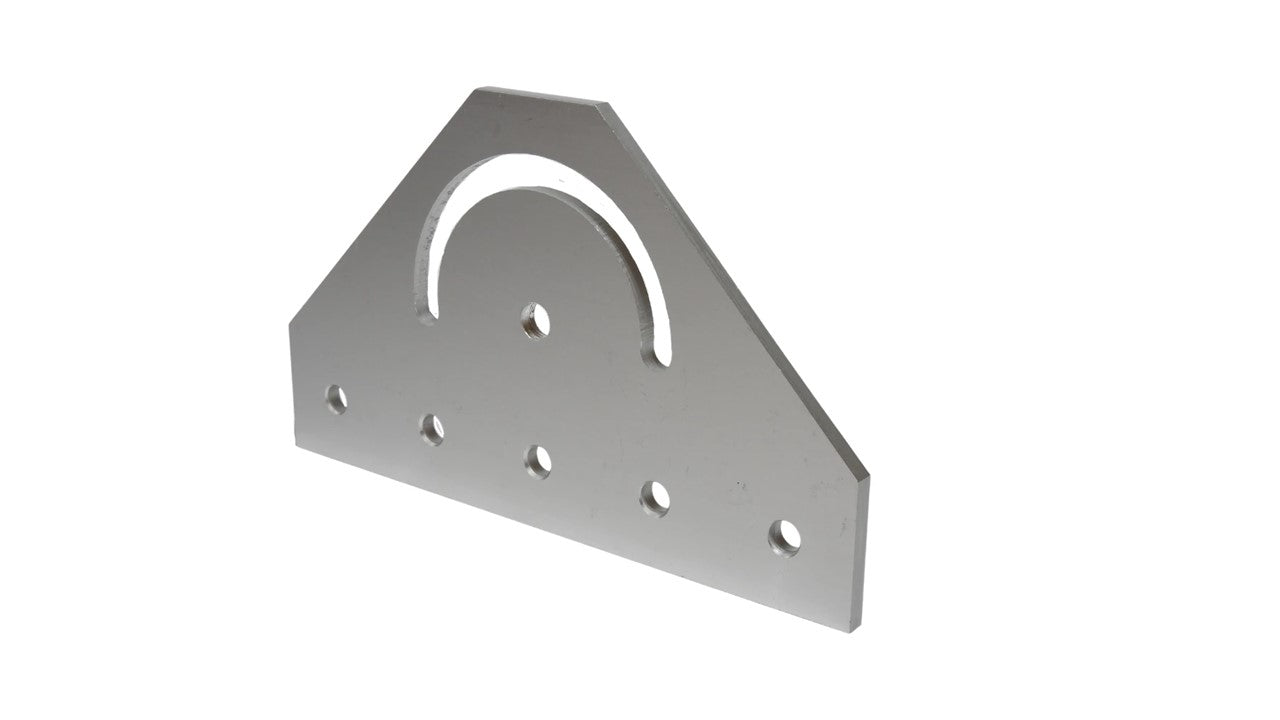

180 Degree Pivot Plate: Broaden Your Angular Possibilities

Unveiling the 180 Degree Pivot Plate, your gateway to enhanced angular versatility in your projects. This pivot plate is meticulously crafted from aluminum, presenting a lightweight yet robust solution for your pivotal connection needs.

The permanently lubricated bronze bushing acts as a high-strength pivot point, ensuring smooth and reliable pivotal motion across 180 degrees.

Please Note:

This 180 Degree Pivot Plate is compatible with our 40 Series T-Slot Linear Extrusion.

Features

  • Robust Pivot Points: The bronze bushings embedded in this pivot plate act as high-strength pivot points, ensuring a smooth, reliable pivoting action that stands the test of time.
  • 180-Degree Axial Motion: The unique design of this plate facilitates a wide range of angular connections, enhancing the flexibility of your assemblies with a generous 180-degree axial motion.
  • Aluminium Construction: Crafted from high-quality aluminium, this pivot plate is lightweight yet incredibly durable, prepared to withstand the rigours of long-term use while maintaining its structural integrity.

Why Choose This Pivot Plate?

  • Versatility: The broad 180-degree pivotal range unlocks a myriad of angular connection possibilities, making it a versatile choice for various project requirements.
  • Ease of Assembly: With five strategically placed holes along the bottom and a long semi-circular hole for enhanced adjustability, the design of this pivot plate simplifies the assembly process, ensuring a firm yet flexible connection with minimal hassle.
  • Reliable Performance: Engineered with precision and high-quality materials, this plate provides a dependable solution for your pivotal connection needs, fostering confidence in the stability and reliability of your assemblies.

Specifications

  • Material: Aluminum
  • Compatibility: 40 Series T-Slot Profiles
  • Weight: .245g
  • Dimensions: 200x120x6mm

Drawings

180 Degree Pivot Plate

A B C D E F G H kg
200mm      40mm     20mm    8.3mm    10mm    8.3mm     6mm     120mm     0.245

Explore new dimensions of structural creativity with the 180 Degree Pivot Plate. The generous 180-degree pivotal range, combined with precision engineering, empowers you to achieve various angular configurations effortlessly. The ease of assembly and reliable performance make it a coveted choice among builders aiming for flexible yet robust connections.

What makes T-Slots such an easy assembly task?

Constructing frames from T-Slot extrusions is straightforward as they eliminate the need for specialized tools or welding, thereby simplifying the assembly process. To build frames using T-Slot Linear Rail, you will require:

  1. 40 Series T-Slot Extrusions: These form the main structural components, usually crafted from aluminum, with slots along their lengths for easy connection of various parts and accessories. Additionally, their robustness ensures they hold up well over time.
  2. 40 Series Brackets and Connectors: These specialized components fit snugly into the T-Slot extrusions, securing them together at various angles. The range includes corner brackets, T-nuts, L-shaped brackets, and other connectors. Besides, they are easy to install and adjust as needed.
  3. Fasteners: Utilize Bolts, screws, and nuts to securely attach the brackets and connectors to the T-Slot extrusions. Furthermore, their variety allows for flexible assembly solutions.
  4. Tools:  Basic hand tools such as wrenches, Allen keys (hex keys), and screwdrivers are necessary for assembly. Additionally, a saw may be needed to cut the T-Slot extrusions to your desired lengths.
