180-Degree Steel Steering Connecting Plate – 40 Series

In stock
SKU: RM1515
Regular price $4.90 AUD

180-Degree Steel Steering Connecting Plate – 40 Series: Pivot with Precision

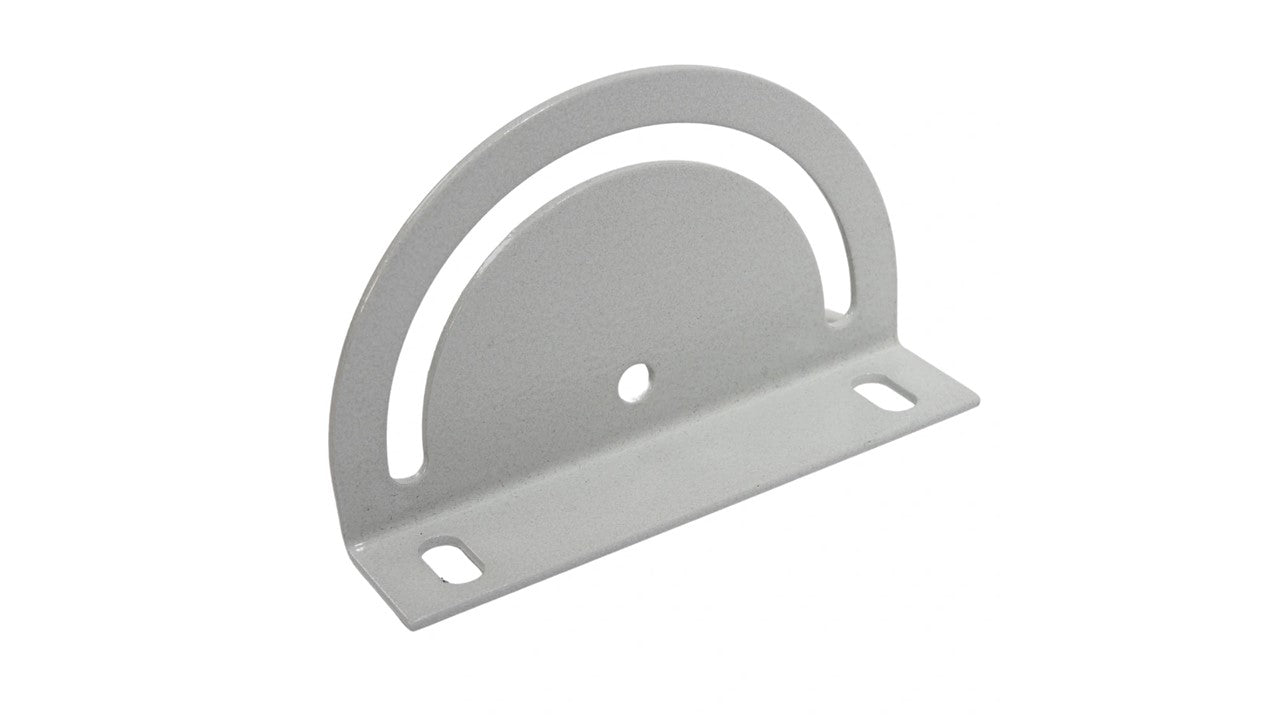

Unlock a realm of structural possibilities with the 180-Degree Steel Steering Connecting Plate. This robust connecting plate, crafted from powder-coated steel, is tailored to seamlessly integrate with 40 Series T-Slot Profiles. Its unique 180-degree semi-circle hole coupled with an ‘L’ shaped base design allows for versatile steering or pivoting connections within your setups.

Please Note:

This 180-degree steel Steering Connecting Plate is compatible with our 40 Series T-Slot Linear Extrusion.

Features

  • Robust Material: The powder-coated steel construction ensures durability and reliability in any application.
  • Versatile Design: The 180-degree semi-circle hole along with two additional holes on the base offers a wide range of motion for steering or pivoting connections.
  • Ease of Installation: The ‘L’ shaped base simplifies mounting, saving time and effort in assembly.

Why Choose This Connecting Plate?

  • Durability: Built to last, ensuring a long-term solution for your structural or mechanical needs.
  • Versatility: Offers a wide range of angular connections for various applications.
  • Ease of Assembly: The intuitive design promotes a hassle-free assembly experience.

Specifications

  • Material: Steel – powder coated
  • Compatibility: 40 Series T-Slot Profiles
  • Weight: .204g
  • Dimensions: 130x100x3mm

Drawings

180 Degree Steel Steering Connecting Plate

A B C D E kg
130mm   31mm   3mm   8.1mm   100mm   0.204

Explore a horizon of structural creativity with the 180-degree steel Steering Connecting Plate, engineered to meet your steering and connecting needs with precision and reliability.

What makes T-Slots such an easy assembly task?

Constructing frames from T-Slot extrusions is straightforward as they eliminate the need for specialized tools or welding, thereby simplifying the assembly process. To build frames using T-Slot Linear Rail, you will require:

  1. 40 Series T-Slot Extrusions: These form the main structural components, usually crafted from aluminium, with slots along their lengths for easy connection of various parts and accessories. Additionally, their robustness ensures they hold up well over time.
  2. 40 Series Brackets and Connectors: These specialized components fit snugly into the T-Slot extrusions, securing them together at various angles. The range includes corner brackets, T-nuts, L-shaped brackets, and other connectors. Besides, they are easy to install and adjust as needed.
  3. Fasteners: Utilize Bolts, screws, and nuts to securely attach the brackets and connectors to the T-Slot extrusions. Furthermore, their variety allows for flexible assembly solutions.
  4. Tools:  Basic hand tools such as wrenches, Allen keys (hex keys), and screwdrivers are necessary for assembly. Additionally, a saw may be needed to cut the T-Slot extrusions to your desired lengths.
