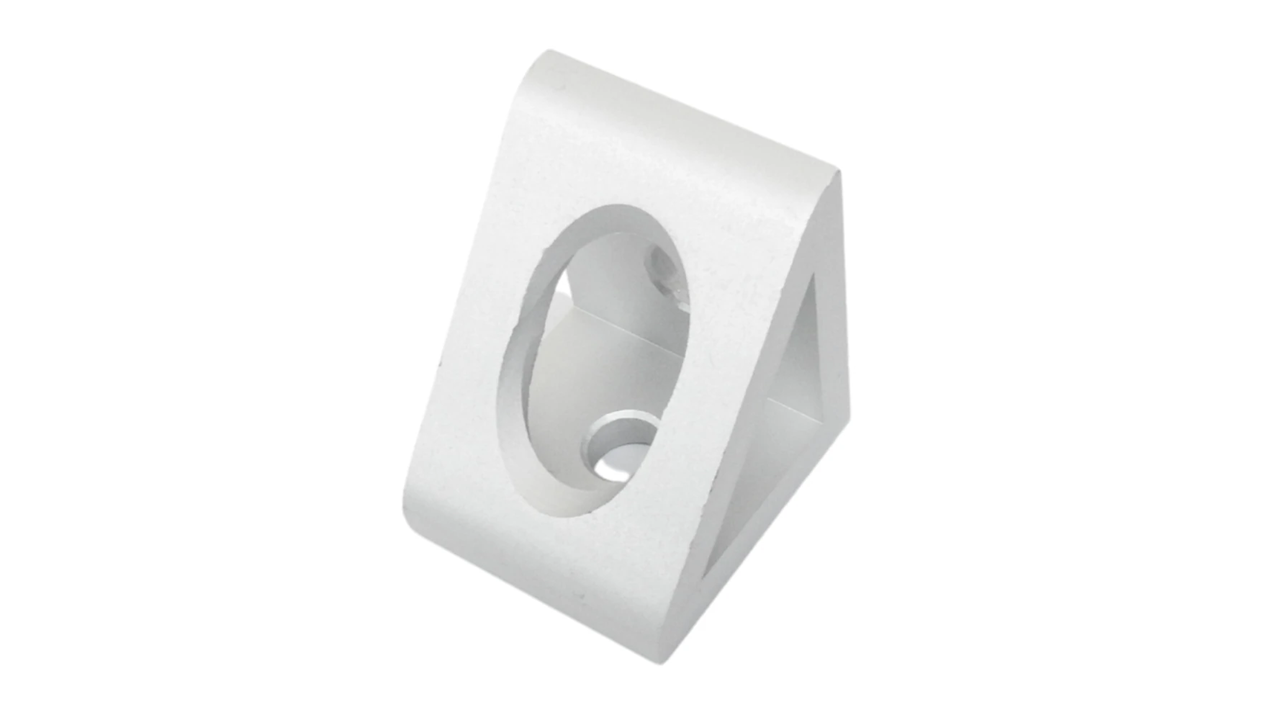

2-Hole Gusset Corner Bracket – 40 Series

In stock
SKU: RM3291
Regular price $4.30 AUD

2 Hole Gusset Corner Bracket – 40 Series: The Ultimate Choice for Strong and Versatile Connections

The 2-hole Gusset Corner Bracket for 40 Series is a robust and versatile hardware component, perfect for building strong and adjustable structures. Engineered to connect 40 Series T-Slot Linear Rails at a 90-degree angle, this bracket is a game-changer for any project.

Please Note:

This 2-hole Gusset Corner Bracket – 40 Series is compatible with our 40 Series T-Slot Linear Extrusion.

Features

  • Gusseted Design: The extra material in the gusseted shape enhances the bracket’s strength and stability.
  • Easy Adjustability: You can position this bracket infinitely along the profile T-slot, offering unparalleled adjustability.
  • 2-Degree Drop-Lock Feature: This feature kicks in when you tighten the assembly bolts to the required torque, ensuring a secure connection.

Why Choose This Bracket?

  • Versatility: This bracket is ideal for both temporary and permanent installations.
  • Reliability: Built to last, it offers long-lasting performance.
  • Ease of Use: Assembly and disassembly are a breeze, with no need for machining services.

Specifications

  • Material: Cast Aluminium
  • Compatibility: 40 Series T-Slot Profiles
  • Weight: 57g
  • Dimensions: 36x40x40mm

Drawings

2 Hole Inside Gusset Corner Bracket - 40 Series

A B C kg
 36mm  40mm  40mm  0.057

What makes T-Slots such an easy assembly task?

Building frames out of T-Slot extrusions is easy because they eliminate the need for specialized tools or welding, simplifying the assembly process. Building frames using T-Slot Linear Rail will require;

  1. 40 Series T-Slot Extrusions: These are the main structural components, usually made of aluminium, with slots along their lengths that allow you to easily connect various parts and accessories.
  2. 40 Series Brackets and Connectors: These are specialized components designed to fit into the T-Slot extrusions and secure them together at various angles. They include corner brackets, T-nuts, L-shaped brackets, and other connectors.
  3. Fasteners: Bolts, screws, and nuts are required to attach the brackets and connectors to the T-Slot extrusions securely.
  4. Tools: Basic hand tools like wrenches, Allen keys (hex keys), and screwdrivers are necessary for assembly. Additionally, a saw may be needed to cut the T-Slot extrusions to your desired lengths.
  5. price $/1pc
