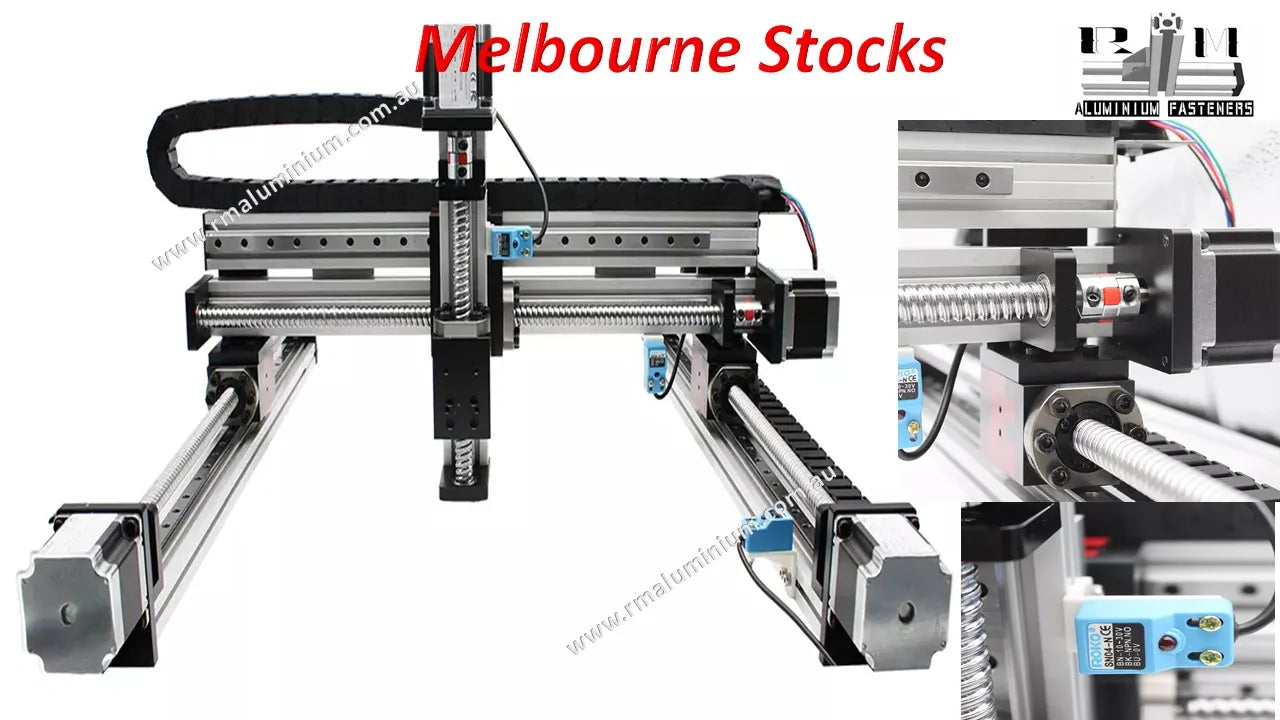

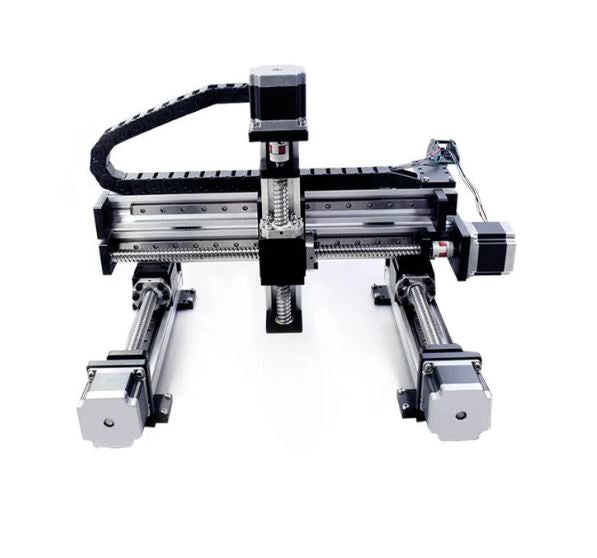

3 Axis X,Y,and Z linear CNC gantry robot 1000 X 1000mm X and Y Axis 100mm Z Axis linear table industrial CNC
Regular price
$2,499.00 AUD
Regular price
Sale
$3,000.00 AUD
Sale price
$2,499.00 AUD
Couldn't load pickup availability
3 axis linear axis with heavy-duty loads ,X and Y axis travel 1000mm ,Z axis travel 100mm .
- Material: Steel+ Alu. Screw Dia.16mm Vertical Load: 0~50kg , Horizontal Load: 0~100kg. Repeatability: 0.05~0.08mm. Stage Width: 120mm .Screw Lead: 4mm/10mm. Moving Speed: 0~300mm/s . Stroke: 100~500mm’
Brand | RM |
Guide Width or Diameter | 40mm |
Model Number | SW40 |
Effective Stroke | 50-4000mm |
Position Accuracy | 0.05mm |
Screw Precision Grade | C7 |
Screw Type | 1605/1610 |
Stepper Motor Type | 57-56 |
Stepper Motor Driver | as to your requirements |
Controller | as to your requirements |
Limit switch | 3 |
Application field | 3D printer automated production line robotic arm plasma detector |
Applicable industry | medical equipment spraying equipment automatic welding series |

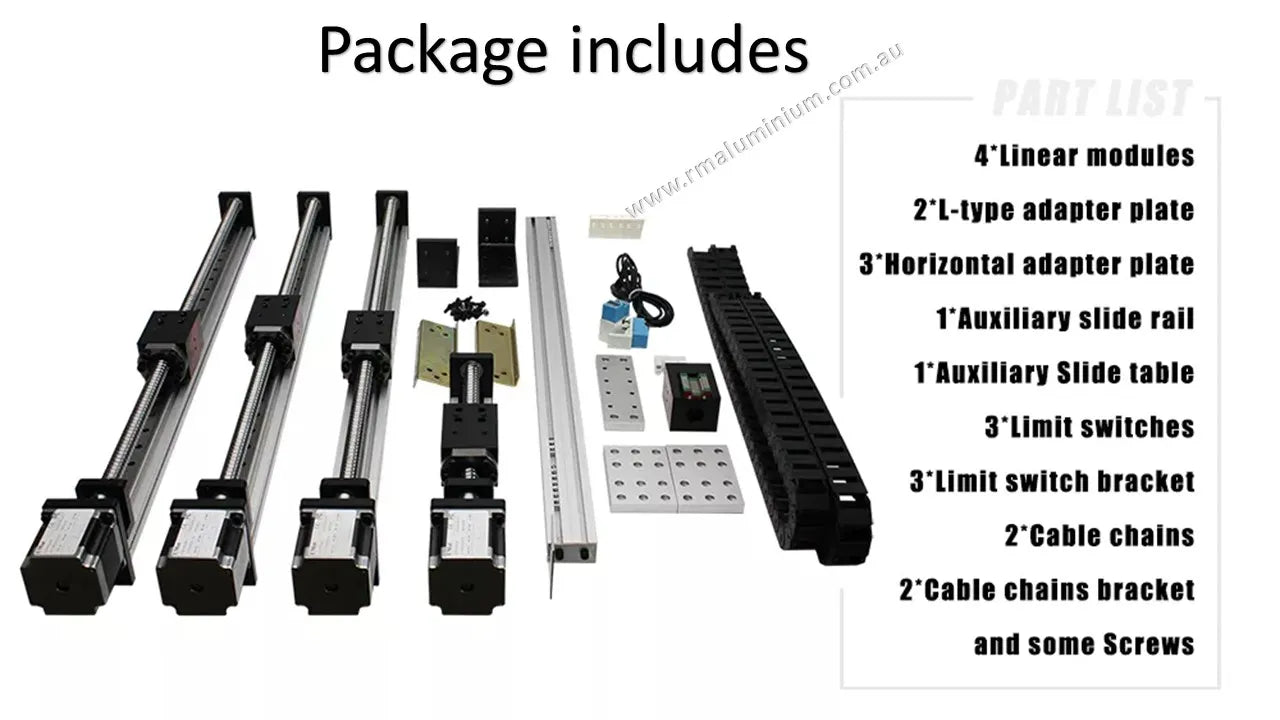

For more details please refer to the pictures
