40 Series Door Latch for Aluminium T-Slot Profile

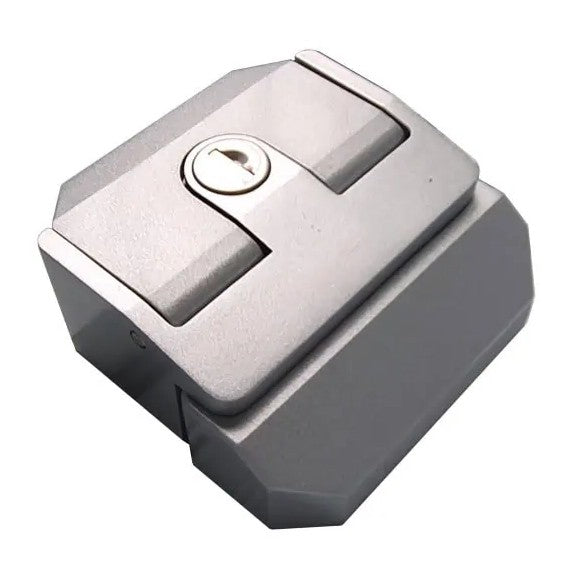

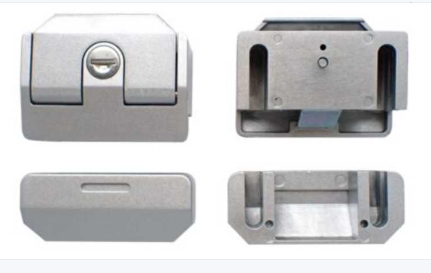

This durable door latch is designed for use with pivot and sliding doors or windows made from 40 series aluminium T-slot profiles. The two-part assembly includes a latch with a built-in keyed locking mechanism and a matching catch.

Each latch comes with two keys, allowing secure access and reliable locking for doors or panels built using T-slot framing systems.

Fitting Instructions:

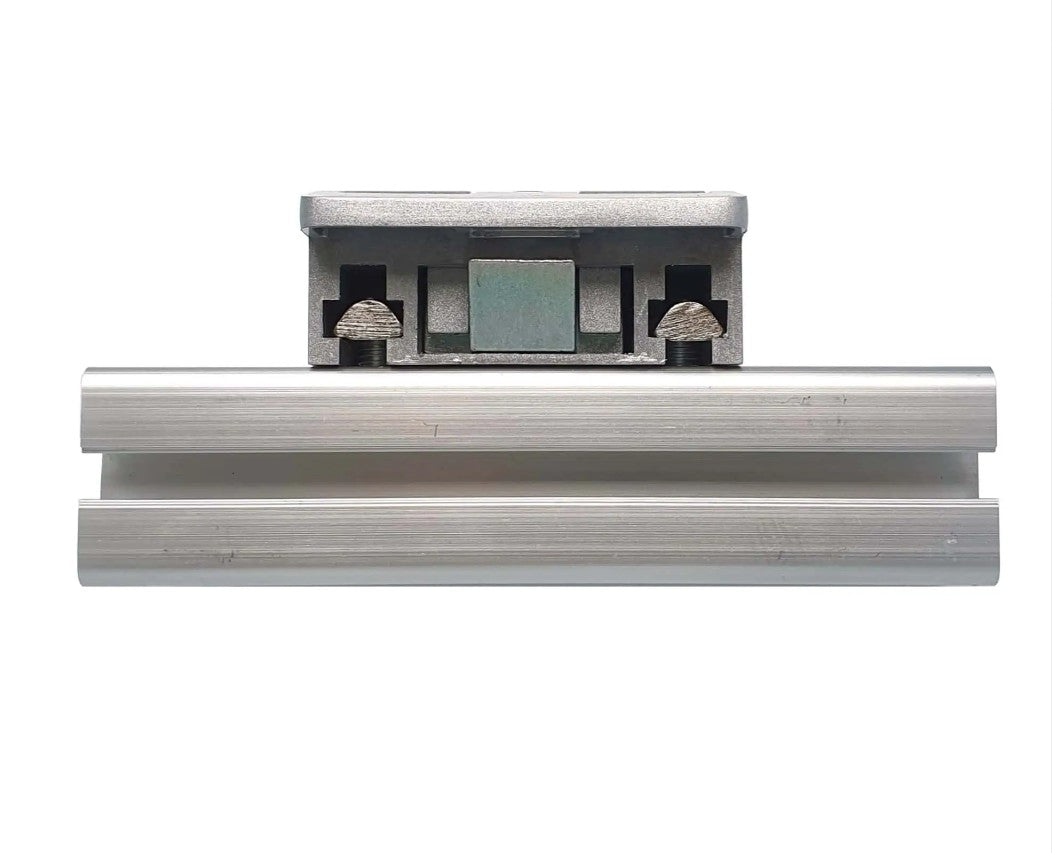

• Insert a 40 series M8 spring roll-in nut into each slot on the underside of the latch.

• Use M8 x 16 button head cap screws to secure the latch by sliding them through the latch into the roll-in nuts.

• To access the bolts with an Allen key, drill two 8 mm holes into the profile, spaced 60 mm apart.

• Align and tighten to firmly mount the latch to the profile.

Features:

• Secure locking mechanism with 2 included keys

• Compatible with all standard 40 series T-slot profiles

• Ideal for pivoting or sliding doors and access panels
