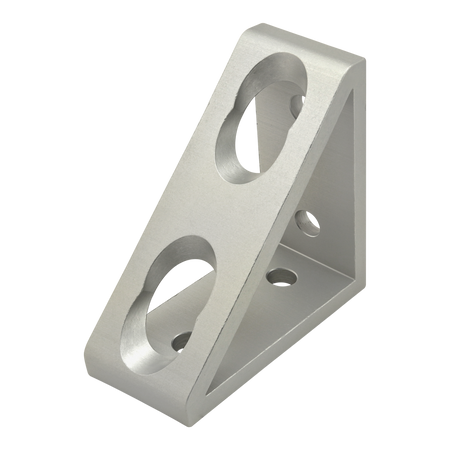

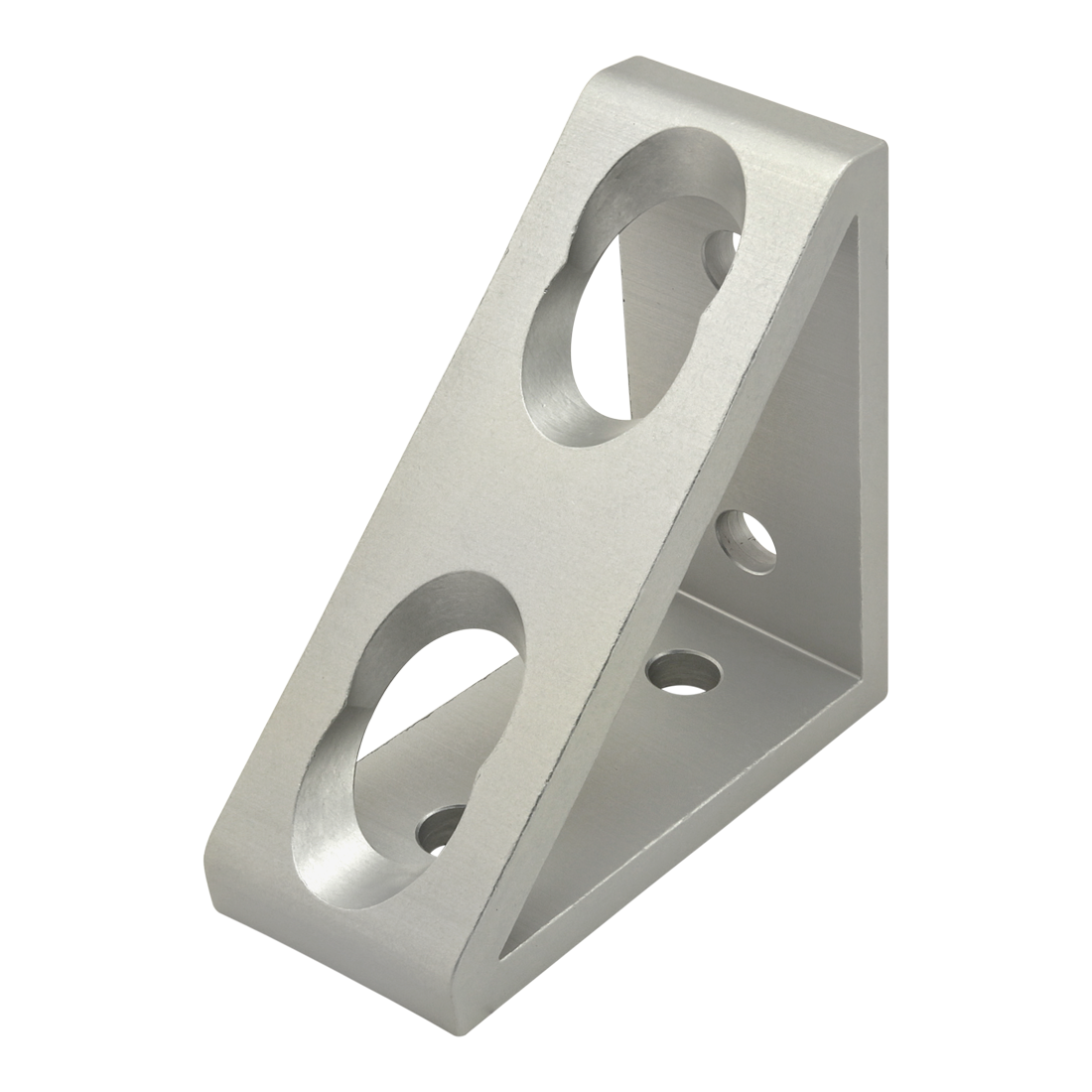

40 Series & Ready Tube 4 Hole - Tall Gusseted Inside Corner Bracket

The 4 hole - tall gusseted inside corner bracket is a strong, external fastening method that creates a 90 degree connection.

Each side of the bracket has two holes stacked one on top of the other.

It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The shape of the gusset provides extra material, strengthening the connection.

The 4 hole - tall gusseted inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque.

It is a fastening method that can be repositioned and reused.

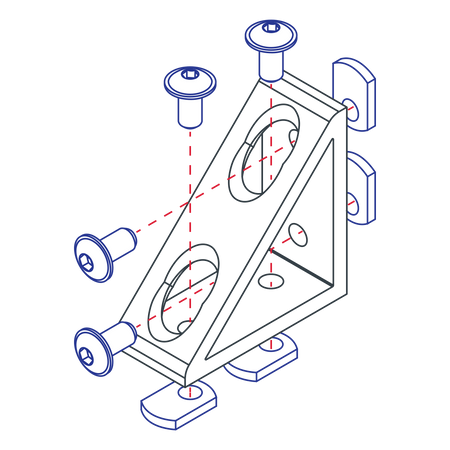

The suggested mounting hardware can be found on the "Suggested Hardware" tab.
