Home » 4000 × 250 mm Portable Aluminium Belt Conveyor Kit – White Food Grade PVC Belt & SEW Drive
RM Components

4000 × 250 mm Portable Aluminium Belt Conveyor Kit – White Food Grade PVC Belt & SEW Drive

In stock
SKU: RM6335
$6,930.00 AUD Inc. GST

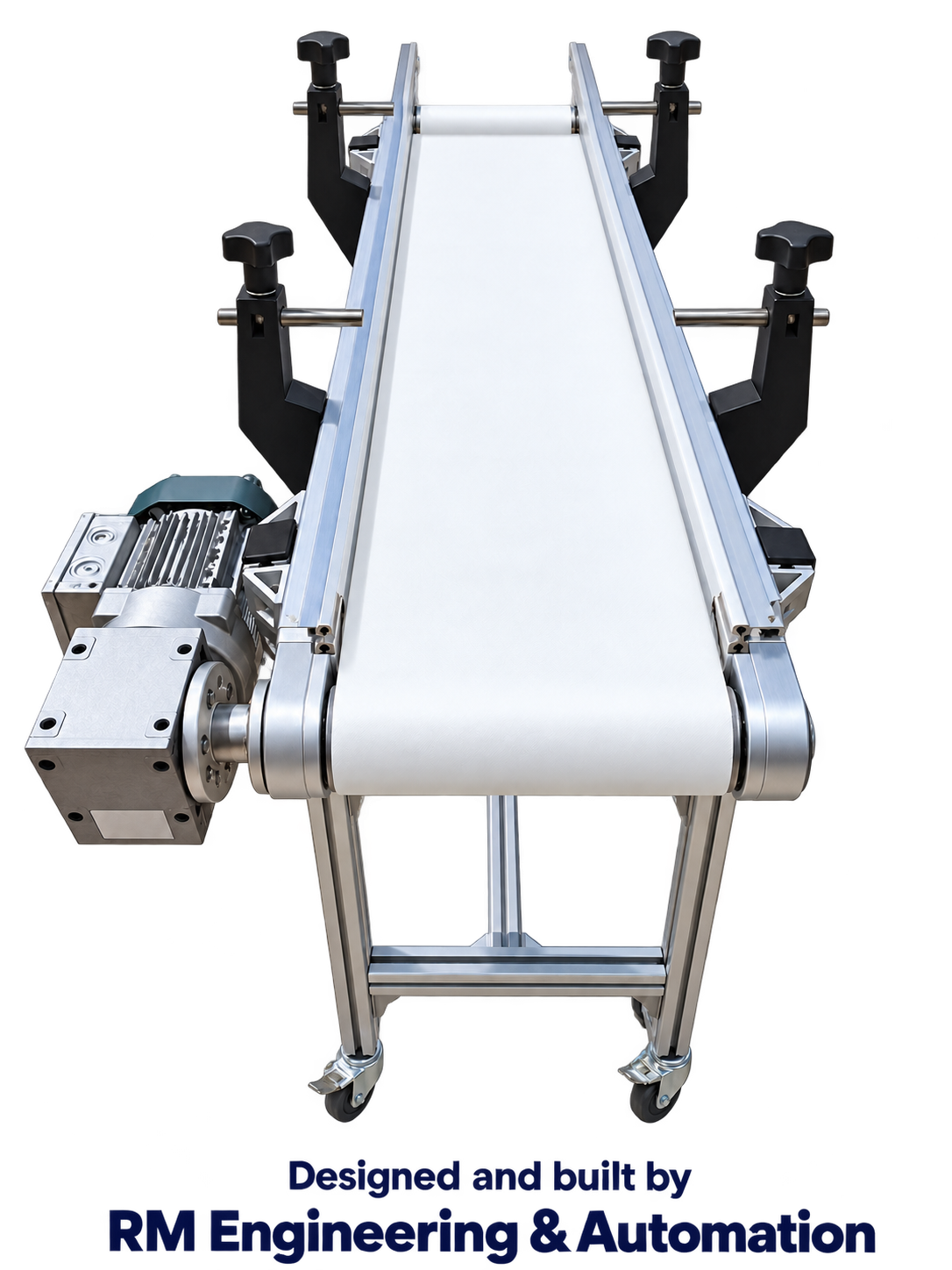

This portable aluminium belt conveyor kit features a 4000 mm conveyor length and 250 mm belt width, providing a practical solution for product transfer and general material handling.

The conveyor combines a 4080 and 4040 aluminium profile frame, a white food grade PVC belt, and a SEW motor and gearbox with a suitable SEW VFD speed controller.

Castor wheels and adjustable working height allow convenient positioning to suit your existing setup, while adjustable top guide rails accommodate different product widths.

Specifications and included components

The listed price includes the following frame and components, supplied as an unassembled kit:

Component Details
Conveyor length 4000 mm
Belt width 250 mm
Aluminium frame 4080 and 4040 aluminium profile frame components
Conveyor belt White food grade PVC belt
Drive shaft 75 mm knurled drive shaft
Conveyor rollers Drive roller and driven rollers
Motor and gearbox SEW SPIROPLAN right-angle gearmotor, configured to suit the application
Speed controller Suitable SEW variable frequency drive (VFD)
Top guide rails Adjustable to accommodate different product widths
Height adjustment Adjustable supports to align with your existing setup
Castor wheels For convenient repositioning
Belt support plate Customised to suit the conveyor configuration

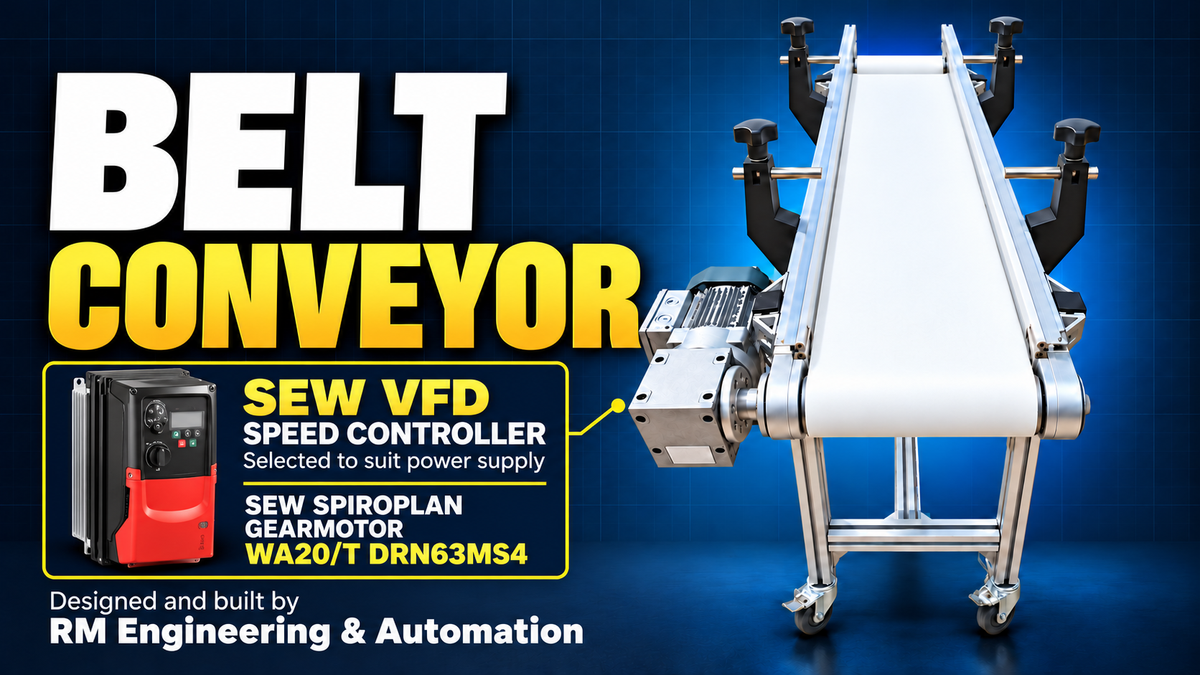

SEW drive and variable speed control

A suitable SEW motor, gearbox and VFD package is selected to suit the required load, operating speed and available power supply.

Motor specifications, gearbox configuration, VFD rating, load capacity and operating speed will be confirmed before your order is finalised.

Single phase or three phase power supply

Please advise before ordering whether your installation has a single phase or three phase power supply, so the appropriate motor and drive configuration can be confirmed.

Important — supplied flat packed and unassembled

This product requires customer assembly. The frame, belt, rollers, motor, gearbox, VFD and other listed components are supplied as an unassembled kit.

Assembly can be arranged on request. If you would prefer an assembled conveyor, please contact our team before ordering to discuss this option.

Confirm your requirements

Before placing your order, please provide:

  • The products being conveyed and their dimensions.

  • Required load capacity.

  • Preferred working height.

  • Required belt speed, if known.

  • Available power supply.

  • Whether you require assembly assistance.

Watch the conveyor demonstration

Watch our conveyor demonstration on YouTube for a closer look at the conveyor design.

Contact our team to confirm pricing, specifications and assembly options for this 4000 mm long × 250 mm belt width conveyor kit.
