6 Hole Aluminium Hinge 62×60 – 40 Series

In stock
SKU: RM9356
Regular price $6.99 AUD
No reviews

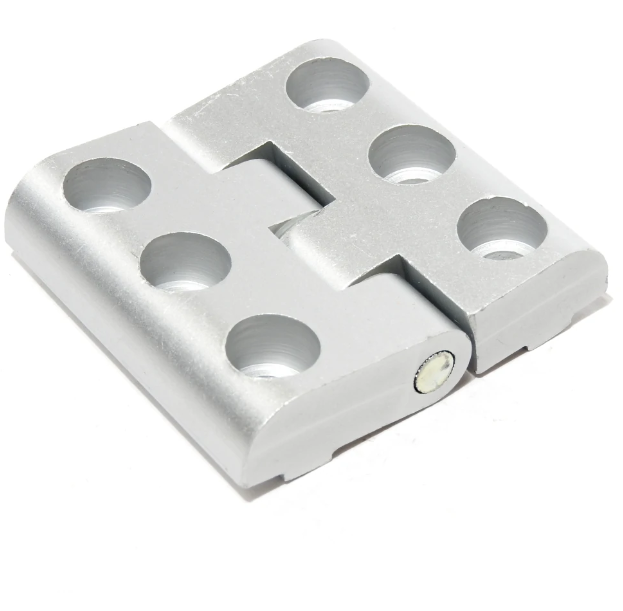

Experience Seamless Motion with the 6 Hole Aluminium Hinge 62×60

Introducing the 6 Hole Aluminium Hinge 62×60, a robust and versatile hinge designed exclusively for seamless integration with 40 Series T-Slot Profiles. Crafted from anodized aluminium, this hinge promises durable performance and a sleek, modern aesthetic. Its 2 interlocking halves provide nearly 180 degrees of rotational movement, creating right angles on each side effortlessly.

The hinge houses three holes on each half, offering a total of six points for secure attachment with screws. Additionally, ingeniously crafted external grooves fit snugly into the T-slot, enhancing stability and precision in alignment. This feature simplifies installation and bolsters the structural integrity of your assemblies.

Please Note:

This 6 Hole Aluminium Hinge 62×60 is compatible with our 40 Series T-Slot Linear Extrusion.

Features

  • Durable Aluminium Construction: Crafted for longevity, ensuring reliable performance through extensive use.
  • 180-Degree Movement: Provides flexibility in creating various angular connections, aiding in achieving accurate geometric configurations.
  • Six-Hole Design: Ensures a strong and stable connection between 40 Series T-Slot Extrusions.
  • Easy Installation: External grooves are designed to fit snugly into the T-slot, simplifying the assembly process.

Why Choose This Hinge?

  • Versatility: Facilitates a wide range of angular connections for your construction and engineering projects.
  • Ease of Assembly: Simplifies the joining process, ensuring a quick and hassle-free assembly experience.
  • Reliable Performance: Offers a dependable connection solution for your 40 Series T-Slot Extrusions.

Specifications

  • Material: Aluminium – anodized
  • Compatibility: 40 Series T-Slot Profiles
  • Weight: .11g
  • Dimensions: 62x60x13mm

Drawings

6 Hole Aluminium Hinge 62x60

A B C D E F G kg
62mm 60mm 8.3mm 40mm 20mm 13mm 8mm 0.11

Discover a world of effortless assembly and durable performance with the 6 Hole Aluminium Hinge 62×60 – 40 Series. This hinge meets your highest expectations in terms of flexibility, strength, and ease of use.

What makes T-Slots such an easy assembly task?

Constructing frames from T-Slot extrusions is straightforward as they eliminate the need for specialized tools or welding, thereby simplifying the assembly process. To build frames using T-Slot Linear Rail, you will require:

  1. 40 Series T-Slot Extrusions: These form the main structural components, usually crafted from aluminium, with slots along their lengths for easy connection of various parts and accessories. Additionally, their robustness ensures they hold up well over time.
  2. 40 Series Brackets and Connectors: These specialized components fit snugly into the T-Slot extrusions, securing them together at various angles. The range includes corner brackets, T-nuts, L-shaped brackets, and other connectors. Besides, they are easy to install and adjust as needed.
  3. Fasteners: Utilize Bolts, screws, and nuts to securely attach the brackets and connectors to the T-Slot extrusions. Furthermore, their variety allows for flexible assembly solutions.
  4. Tools:  Basic hand tools such as wrenches, Allen keys (hex keys), and screwdrivers are necessary for assembly. Additionally, a saw may be needed to cut the T-Slot extrusions to your desired lengths.
