Adjustable speed control conveyor 300x1500mm green PVC belt
Couldn't load pickup availability
Adjustable PVC Conveyor.
Adjustable speed control conveyor,
Size: 300x1500mm green PVC belt.
Motor:120 w ,220v ,50Hz,6.0 uf, 90-1400 RPM
Frame: T slot Aluminium profile
Hight :750mm (with an option of any height you require for your product line)
The conveyor Designed with:
2X 56mm diameter belts rollers
2X 50mm belt tensioner Rollers
1X 56mm diameter Driven shaft that gives you flexibility to run the conveyor forward and reverse without any issues.
You can connect easily with no time to existing product and have more access to all the conveyor parts such as motor, bearing etc.

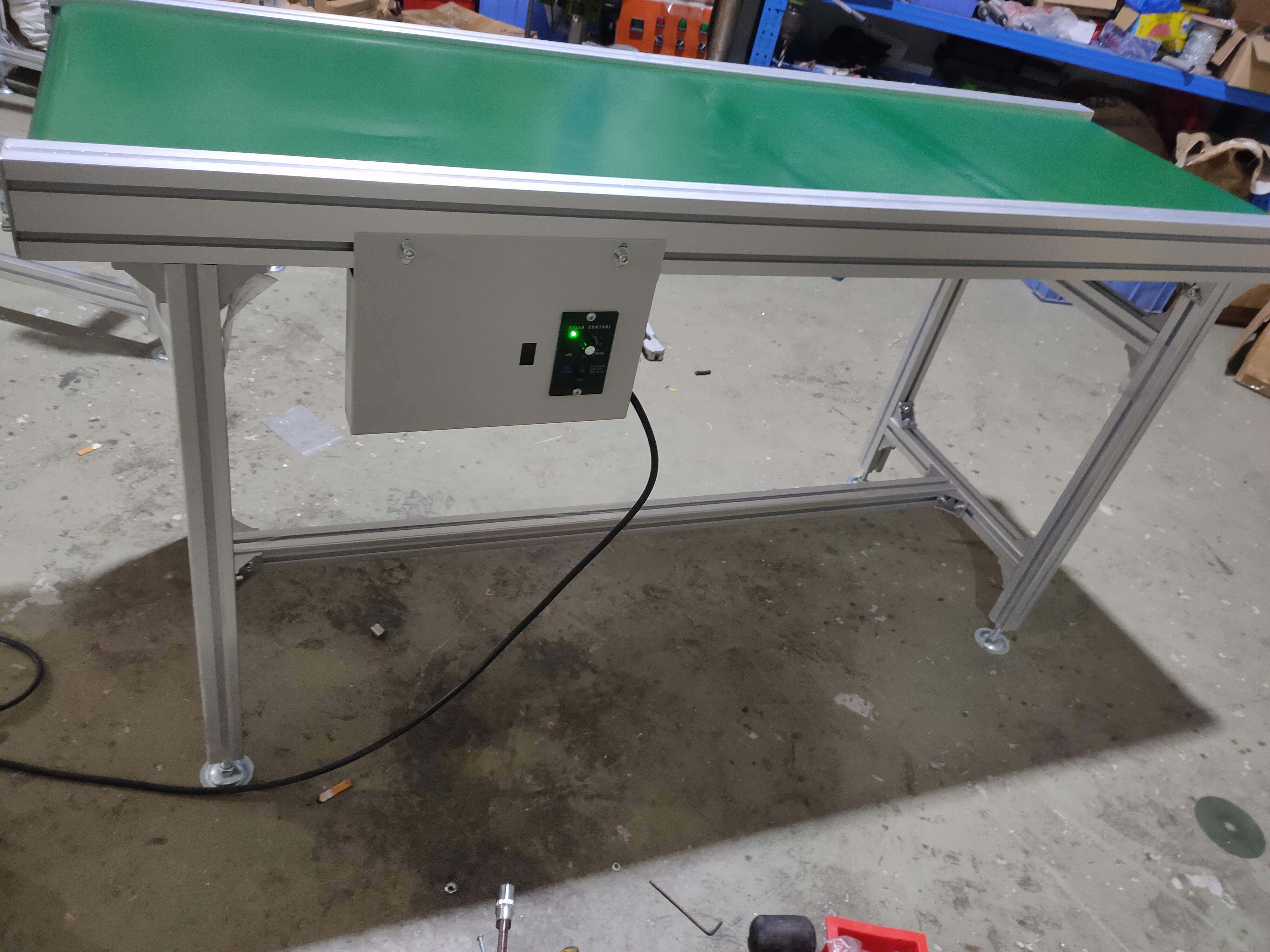

The conveyor motor fitted under the conveyor to give you more room around the conveyor and make it easier to connect to existing line.
The T slot Aluminium Frame that gives you more options if you like to connect the printer or sliding rails or any other accessories.
PVC conveyer with T-slots aluminium frame, adjustable speed control running forward and reverse a perfect solution for your product line.
Easy to install and Low maintenance.
Product list.
1X 240v Motor.
1X PVC belts
1x speed control
2X 56mm belt Rollers for each end of the conveyor
1X 56mm diameter driven shaft
2x 50mm diameter tensioner Rollers
2 X L and R mounting bracket
2X convers
4X adjustable legs
1 sets of aluminium profile frame .
All other connectors and accessories
PDF assembling Manual.
Please Note:
It will come as un assemble if you like us to assemble it for you please let us know.
For any other extra parts such as siding top side rails ,different height or any other modification please contact us.
