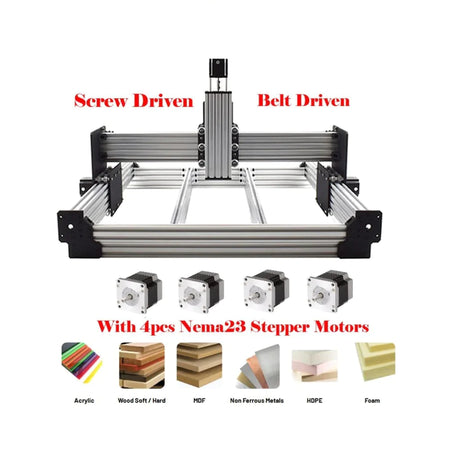

Belt Driven WorkBee Mechanical Kit 1500x1000mm – Silver with Nema 23 stepper Motors

In stock
SKU: RM4743
$1,200.00 AUD

Belt Driven WorkBee Mechanical Kit 1500x1000mm – Silver with Nema 23 stepper Motors

The CNC router is suitable for Industry, Technology Research, Advertising Design, Arts Creation, Teaching,
Student Project and Hobby Purposes.

Compatible Material for Cutting/Milling/Engraving:

  • Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam

  • Model and Technical Parameters

  • Frame Size:1500 X 1500 mm .
  • Working area Approximate :1300 X 770mm
  •

Motion

Drive System - GT3 Timing Belt and GT3 pulley with Mini -V-wheels

Linear Guides -Polycarbonate wheels on anodised C-Beam V-Slot Extrusion.

Motors - NEMA23 175oz Stepper Motors (X, Y & Z)

Accuracy - 0.05 - 0.10mm (Screw Driven)

Note - Maximum recommended speed for Lead Screws 1000mm or greater is 400RPM.

Packing list:

1 x CNC Router frame with all accessories

4 x Nema23 Stepper Motors

1 x PDF Assembly Manual is available by email

If you require Solid frame to keep your machine on top please click  Here.

Please let us know if you have any question
