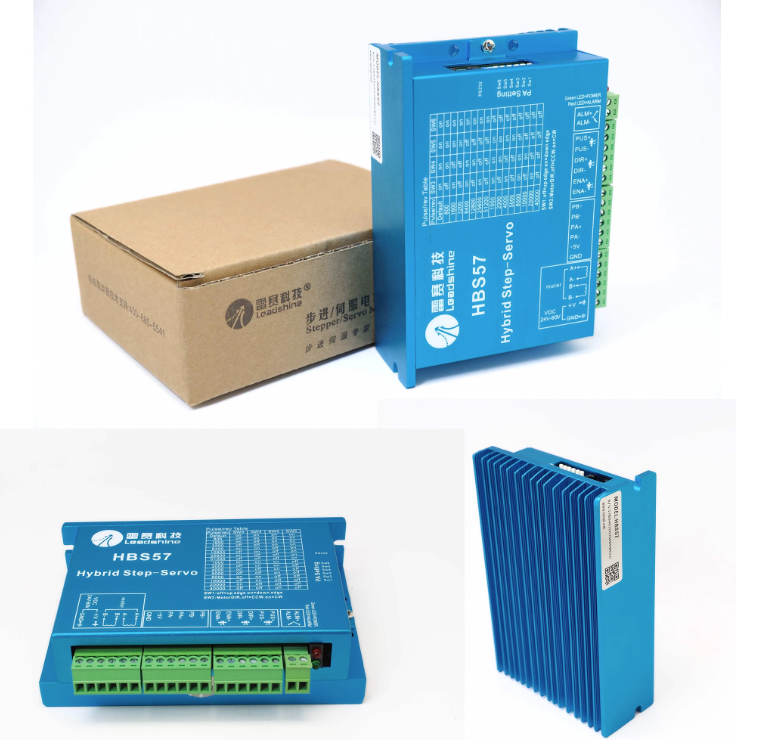

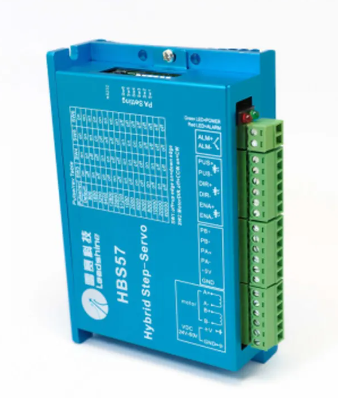

Closed Loop Stepper Motor Driver – HBS57- 20-50VDC

HBS57 Closed-loop Stepper Motor Driver Features:

• Anti-Resonance features provide smooth operation through the RPM range.
• Low noise and low vibration.
• 32bit processor and improved DSP control.
• Closed-loop vector control technology.
• Multi-Stepping allows a low-resolution step input to produce a higher microstep output for smooth system performance.
• Microstep resolutions programmable via dip switch array, from full-step to 1/128 microstepping.
• Optically isolated inputs reduce noise.
• Alarm outputs for fault diagnosis.
• Suitable for Nema23 and Nema24 sized closed-loop stepper motors.
• Support Pulse/Direction, CW/CCW or RS232 control modes. (Step/Dir control recommended)
• Overvoltage and overcurrent protection.

HBS57 Closed-loop Stepper Motor Driver Specifications:

• Supply voltage: 20 to 50 VDC
• Output current: Up to 5.0A Peak (Load Dependent)
• Logic signal current: 7 to 20mA
• Pulse input frequency: 200 kHz
• Encoder Resolution (PPR): 1000
• Isolation resistance: 500 MΩ
• Operating temperature: 0 to 50 °C
• Operating Humidity: 40 to 90%RH
• Vibration: 5.9 m/s² Max
• Weight: Approx. 300 g
• Dimension: 118 x 75x 34 mm

HBS57 Stepper Motor Driver Engineering Drawings

Use the Closed-loop Stepper Motor and driver bundle to drive:

• Nema23 compatible CNC machines
• Laser Cutters
• Plasma Cutters
• Robotic Actuators
• Automated Linear Actuators
