CNC Shield – No Drivers

In stock
SKU: RM1887
Regular price $9.00 USD

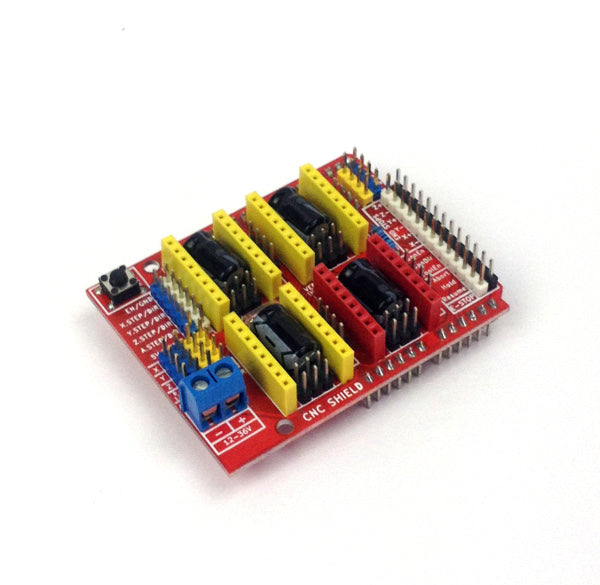

  • This awesome little board can control 4 stepper motors. It comes without stepper drivers .

    Controlled by an Arduino Uno compatible running GRBL, making it easy to use via Universal G-Code Sender, CNC and many other GRBL compatible G-Code sending software's.

    Specifications:

    • Version 3.00
    • 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
    • 2 x End stops for each axis (6 in total)
    • Uses GRBL as control software
    • Uses removable Pololu A4988 compatible stepper drivers.
    • Power supply: DC 12-36V
    • Interface: mini-USB
    • Maximum stepper motor current: less than 2A 2 phase 4 wire stepper motor
    • Over 1A stepper motors must use heat-sinks and/or other cooling (fan)

    Comes with:

    • 1 x CNC Shield
