Right-Hand Lever Mini Micro Limit Switch – SPDT NO/NC, 3-Pin PCB, 5A 125/250V

In stock
SKU: RM1912
$3.85 AUD Inc. GST

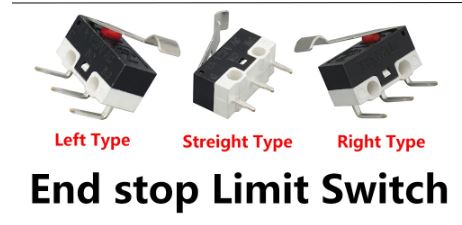

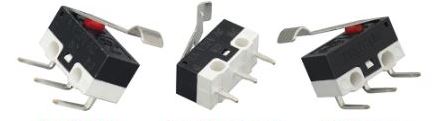

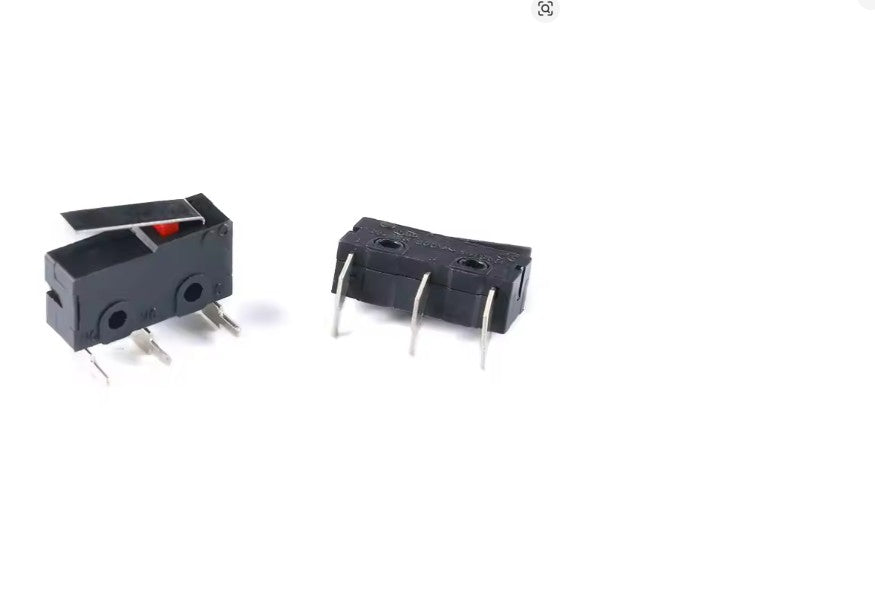

This Right-Hand Lever Mini Micro Limit Switch features a compact design with a roller arc lever actuator positioned on the right-hand side, providing accurate and reliable position sensing for automation and control applications. The switch incorporates a snap-action mechanism for fast, consistent switching and offers SPDT (Single Pole Double Throw) contacts with both Normally Open (NO) and Normally Closed (NC) terminals.

With a 5A rating at 125V/250V AC and 3-pin PCB terminals, this microswitch is ideal for CNC machines, 3D printers, conveyor systems, robotics, vending machines, and other industrial or DIY projects requiring dependable limit or position detection.

Features

  • Right-hand roller lever actuator
  • Compact miniature microswitch design
  • SPDT contact configuration (NO/NC)
  • Reliable snap-action switching
  • 3-pin PCB mounting terminals
  • Long mechanical service life
  • Suitable for industrial and hobby applications

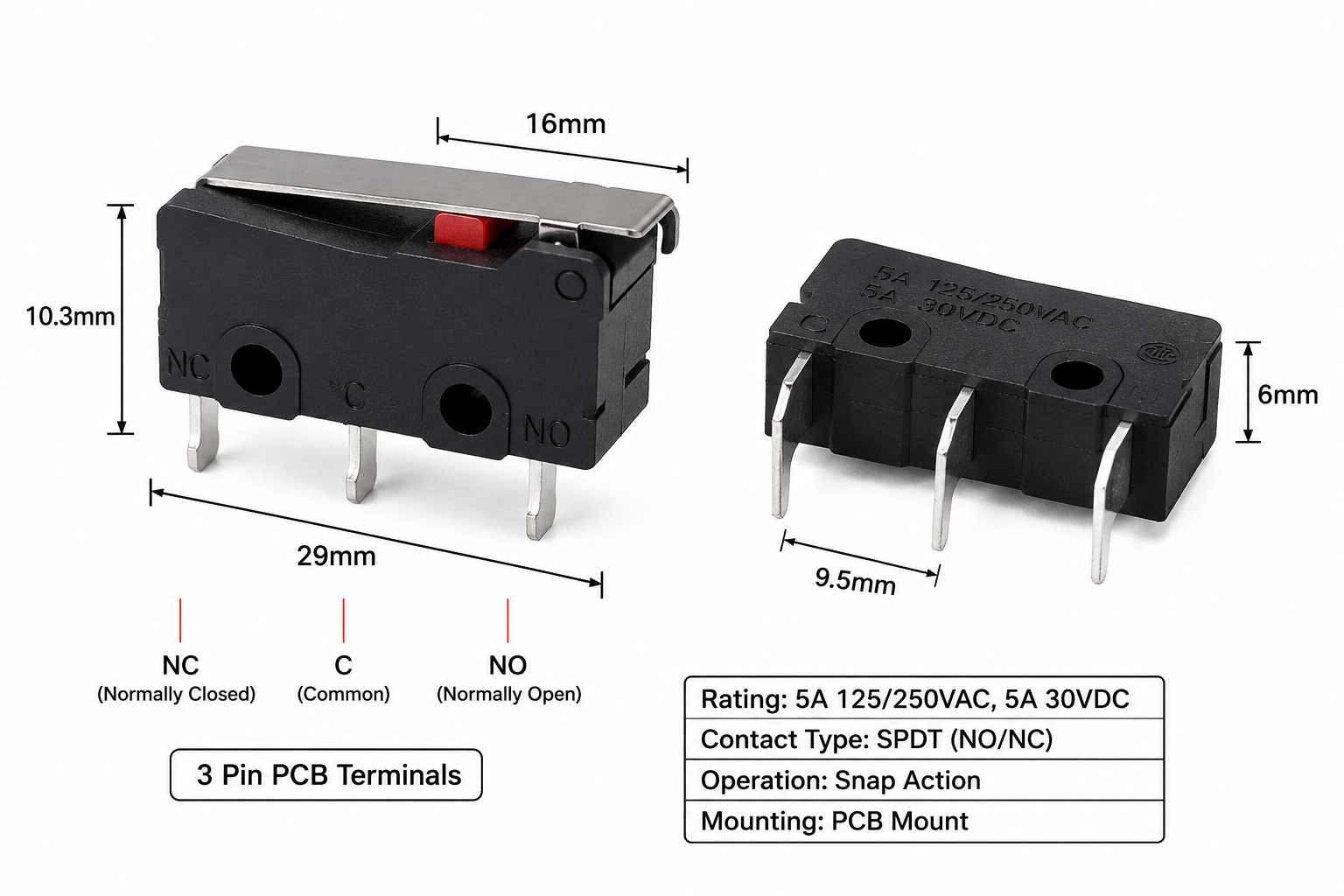

Specifications

Specification Value
Switch Type Mini Micro Limit Switch
Contact Configuration SPDT (NO/NC)
Actuator Type Right-Hand Roller Arc Lever
Terminals 3-Pin PCB
Current Rating 5A
Voltage Rating 125V / 250V AC
Operation Snap Action
Mounting Style PCB Mount
Body Length 29mm
Lever Length 16mm

Applications

  • Limit switches for CNC machines
  • 3D printer endstops
  • Conveyor position sensing
  • Industrial automation equipment
  • Robotics and mechatronics projects
  • Door and gate mechanisms
  • Safety interlocks and travel limits

Package Includes:
1 × Right-Hand Lever Mini Micro Limit Swi
