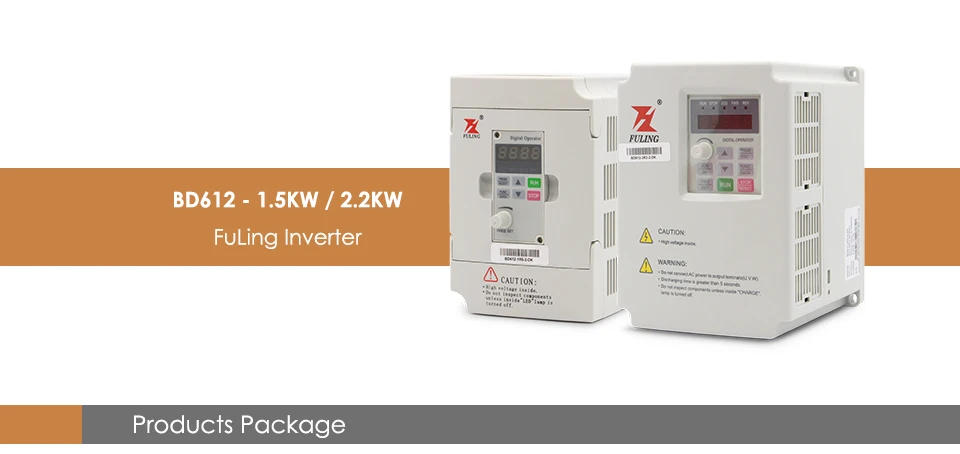

2.2KW Fuling BD612 VFD CNC speed control Variable Frequency For CNC Drive Hybrid Power Inverter vdf

1 PCS 2.2KW FULING Inverter 220V/380V Frequency Drive 0-1000Hz

Power: 2.2KW

Input Voltage: 220v/380v(+/-15%)

Input Frequency: 50/60Hz

Input Phase: 1 /3 phase

Output Voltage: 220v/380vAC

Output Frequency: 0-1000 Hz

Output Current: 2.2KW-10A(220V)/5A(380V)

Output Phase: 3 phase

· It can realize 8-segment speed operation, which is convenient for the control of VIHON card

· Adopt 32-bit microprocessor and sine wave PWM control

· Scientific algorithm, low interference

· Adopt independent air duct, suitable for dusty occasions

· Automatic torque lifting and automatic slip compensation function

· Output frequency range 0~1000.0Hz, up to 2000Hz can be customized

· Built-in standard 485 communication function

· Humanized design: special macro code parameters of engraving machine are set at the factory, which is convenient for users to debug

· Power range: 0.75KW-2.2KW

· The special macro code parameters of the engraving machine are set at the factory, which is convenient for users to debug

DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.
