Home » Heavy-duty aquarium stand frame made from 8080 aluminium T-slot extrusion, designed for large aquarium systems with sump filtration. Frame size: 1800mm L × 700mm W × 850mm H, excluding levelling feet
RM Components

Heavy-duty aquarium stand frame made from 8080 aluminium T-slot extrusion, designed for large aquarium systems with sump filtration. Frame size: 1800mm L × 700mm W × 850mm H, excluding levelling feet

In stock
SKU: RM6225
$2,783.00 AUD Inc. GST

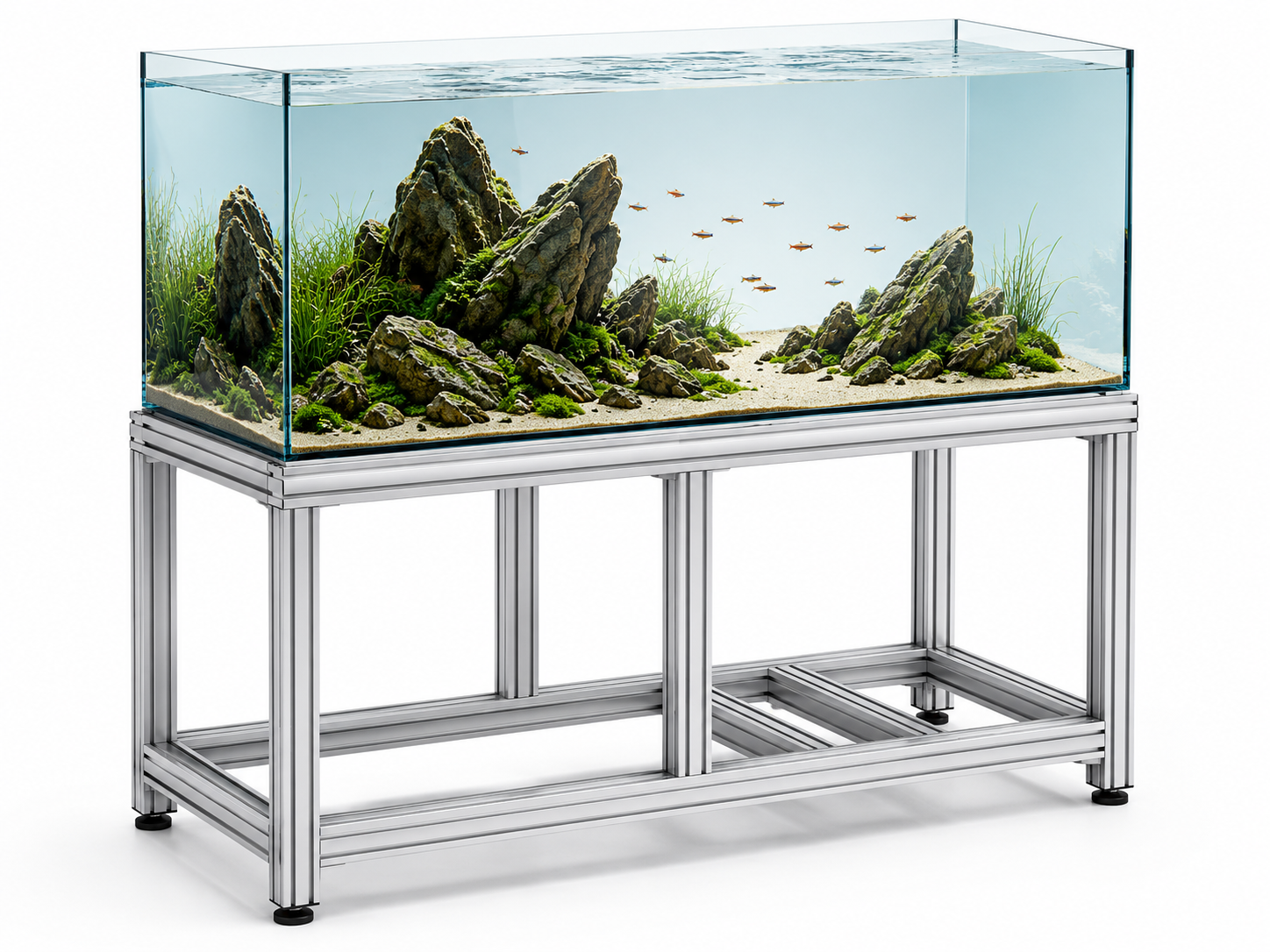

This heavy-duty aluminium aquarium stand frame is designed to support large aquarium setups with a sump filtration system underneath.

The frame is manufactured from strong 8080 aluminium T-slot profile, providing a rigid, corrosion-resistant, and modular structure suitable for freshwater, marine, and reef aquarium applications.

The stand includes a reinforced top frame with cross-members to help spread the aquarium load, a lower support area for the sump, and provision for heavy-duty adjustable levelling feet.

The internal layout is designed to suit a sump measuring 1250mm L × 450mm W × 400mm H, positioned toward the front/right side of the cabinet. The frame provides a clear internal cavity for sump access and maintenance.

Specifications

  • Stand size: 1800mm L × 700mm W × 850mm H

  • Profile: 8080 aluminium T-slot extrusion

  • Suitable sump size: 1250mm L × 450mm W × 400mm H

  • Sump position: front/right side of cabinet

  • Reinforced top frame with cross-members

  • Bottom sump support frame

  • Adjustable levelling feet available

  • Suitable for large aquarium and sump systems

  • Designed by RM Engineering and Automation

Applications

  • Large aquarium stands

  • Marine reef tanks

  • Freshwater display tanks

  • Sump filtration systems

  • Aquarium cabinet frames

  • Heavy-duty equipment support frames

Important Note

This frame is supplied unassembled. If you would like us to assemble the frame for you, please contact us and we can provide a separate assembly quote.

The listed price excludes assembly fees, delivery, installation, tank, sump, panels, doors, top board, and accessories unless stated otherwise.

For large glass aquariums, we recommend using a flat support board or suitable aquarium foam/mat on top of the frame, as required by the tank manufacturer. The stand must be installed on a solid, level floor capable of supporting the total system weight.
