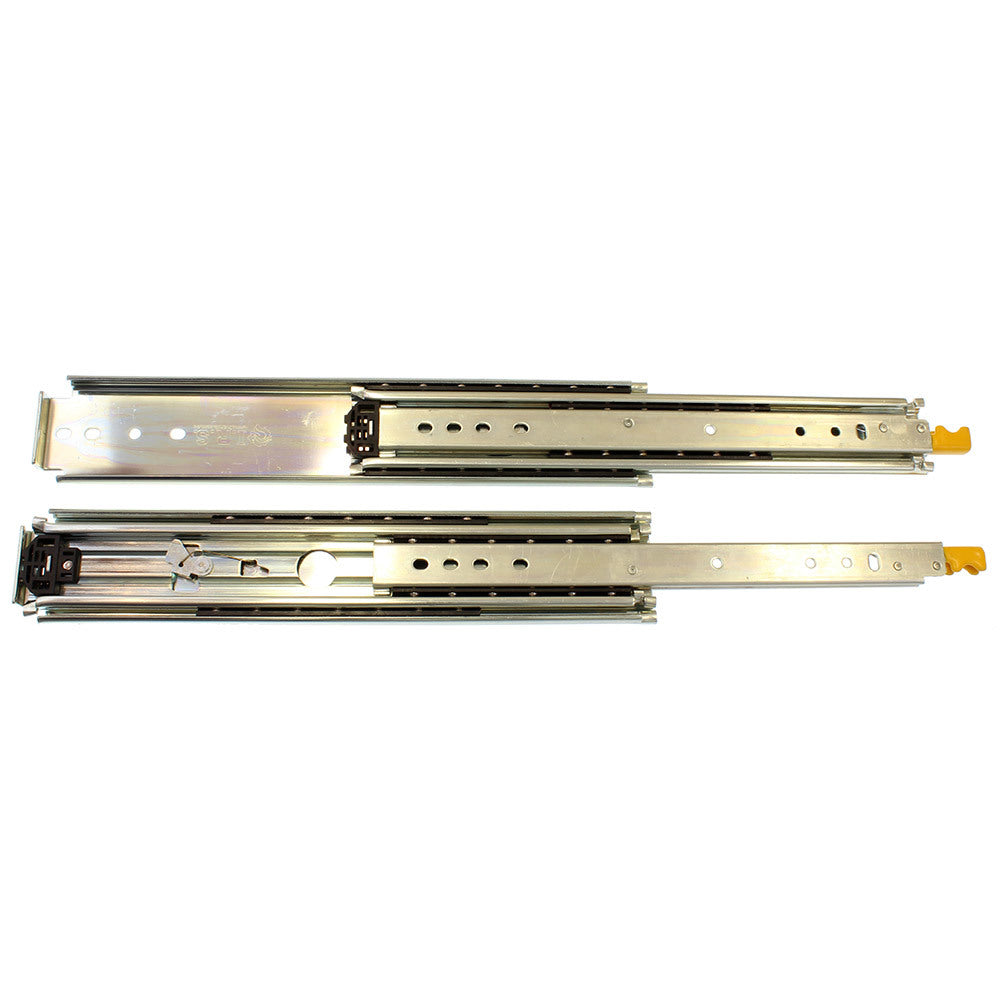

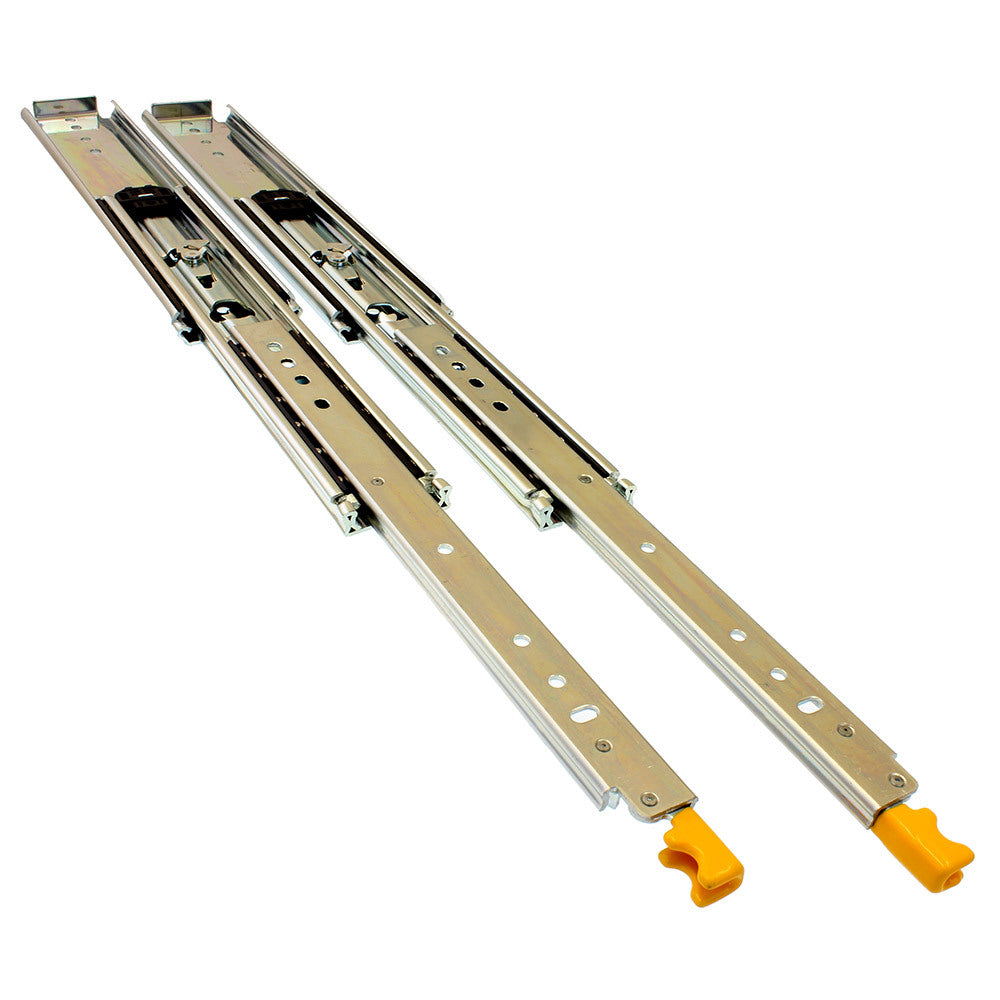

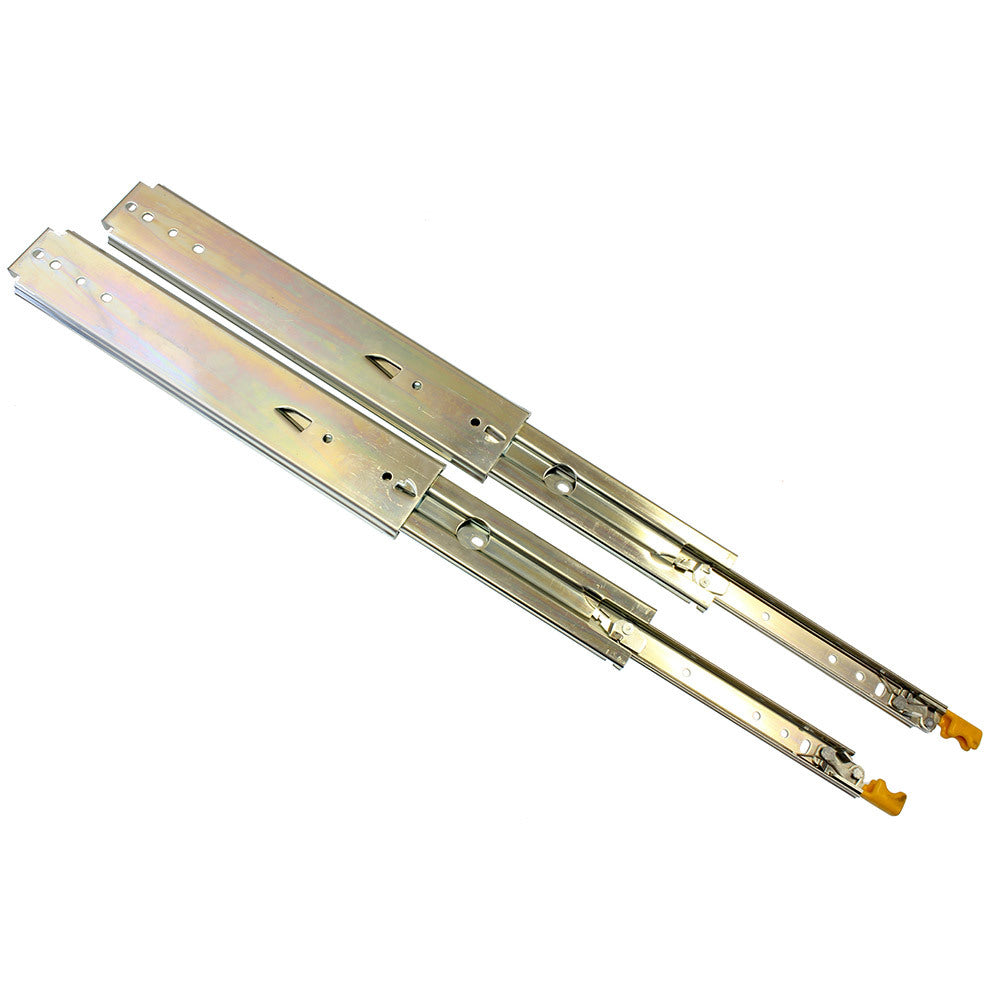

2X Heavy duty locking drawer slide 160Kg load capacity 1422mm Length(56 inch)

In stock
SKU: RM9887
Regular price $136.00 USD

heavy duty locking drawer slide. Tough and robust and great for working or leisure environments utes, vans, camper trailers.

Locking mechanism holds tight when closed and at full extension, providing you with security and optimal access.


  • Load capacity: 160 kg/pair
  • Available in lengths 1422
  • Material: Steel
  • Zinc Plated
  • Full Extension
  • Guided by: 2 ball cages
  • Fitting to the side panel: screw fixing
  • Fitting to drawer: screw fixing
  • Simple installation
  • Allow 25mm extra for the locking tab

Please note that drawer slides support approximately 30% less weight capacity than indicated by their nominated rating when at full open extension. Please consult the weight load chart for further details.


This top quality product has been tested in the Australian environment. Please note a few things to consider during installation.

  • Locking drawer slides have a designated left and right. When installed correctly the locking tab should push down to release. See image 5 above for the correct orientation.
  • The inner rails DO NOT separate from the outer casing for installation – must be marked through screw holes for affixing
  • When marking hole placements you MUST NOT drill through the slide holes during installation. Doing this will create metal filings which lodge in the tracks resulting in rough running and ultimately, failure of the slides.
  • Depending on substrate, stainless steel 'flat head' counter sunk heavy duty screw / NY-lock nuts or stainless steel rivets are recommended.
  • There must be no rubbing of the fixing against the moving slides. This will cause failure of the slide.
  • Our slides are designed to be Side mounted paired side by side. Mounting them vertically one above the other or in a flat position will void the warranty.
    Package Content

    • 2 x Drawer Slides (R/L)
