NEMA23 Motor Right Angle Mount Plate

In stock
SKU: RM9684
Regular price $3.50 AUD

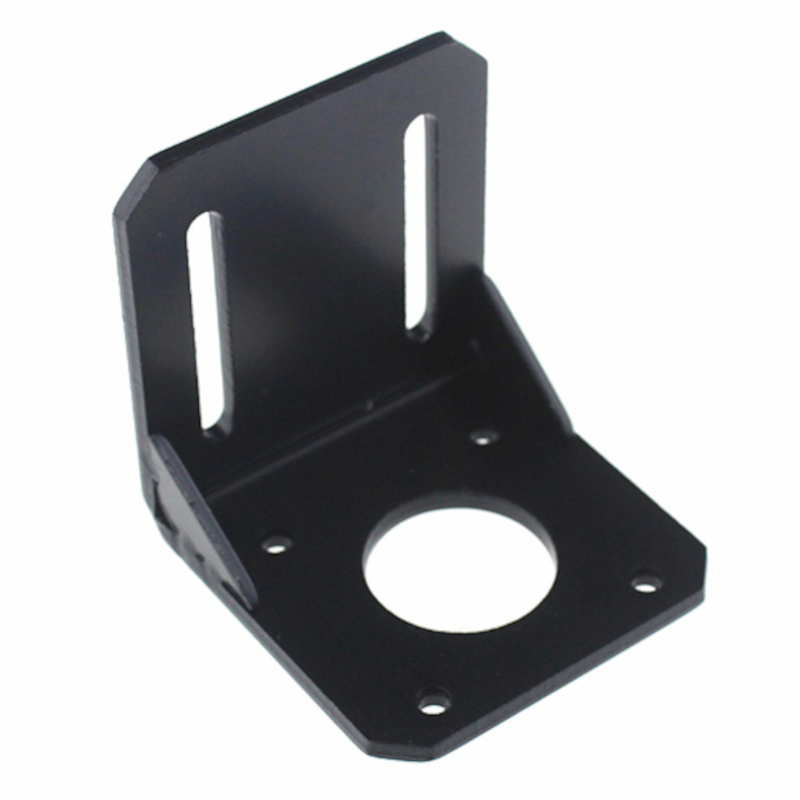

This sturdy black bracket is made from 3mm-thick coated steel and weighs about 160g. It is specifically designed to work with the typical face plate mounting holes of NEMA 23 stepper motors.

Two supports are welded in the corner along the bend of the bracket to provide extra reinforcement, and the bracket features two long 4mm wide slots for mounting it to a surface. The slots are spaced at 40mm, so they fit directly onto our V-Slot rails.

To mount to the rail you will need:

To mount a NEMA23 Stepper Motor you will need:





NOTE:

Includes 1 x NEMA23 Motor Right Angle Mount Plate. Mounting hardware is NOT included
