Nema24 Closed Loop Stepper Motor and HBS57 Driver Bundle – 3.0Nm

In stock
SKU: RM2749
Regular price $160.00 AUD
  • Closed-loop Stepper Motor Specifications:

    • Voltage: 2.25VDC
    • Rated Current: 5A
    • Motor Inductance: 1.8mH
    • Holding Torque: 3.0Nm
    • Encoder cable length: 5000m
    • Motor cable length: 500mm
    • Weight: 1.6kg

    Features of the Closed-loop Stepper Motor:

    • High-performance and low inductance Closed-Loop Hybrid Stepper Motor.
    • Comes with a handy 5m long encoder cable for ease of wiring.
    • Low vibration and high efficiency.
    • Built-in quadrature encoder. (1000 line encoder)
    • High precision ensures precise carving in CNC applications


    • 3.0Nm Closed Loop Stepper Motor
    • 5m long encoder cable

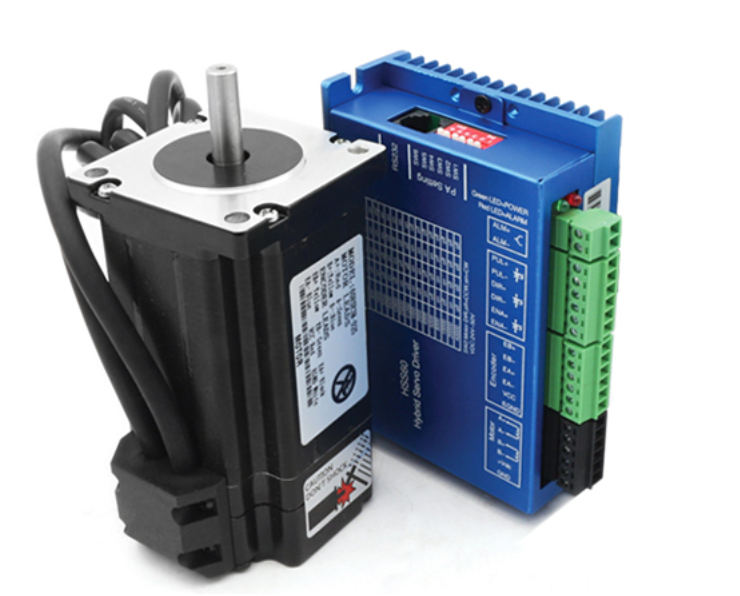

    • HBS57 Closed-loop Stepper Motor Driver
    • 1m 2 Core DC power cable.

Motor Coil Wiring Diagram

Encoder Lead Pinout

Closed Loop Stepper Motor Driver Terminal Lead Colour

HBS57 Closed-loop Stepper Motor Driver Features:

  • Anti-Resonance features provide smooth operation through the RPM range.
  • Low noise and low vibration.
  • 32bit processor and improved DSP control.
  • Closed-loop vector control technology.
  • Multi-Stepping allows a low-resolution step input to produce a higher microstep output for smooth system performance.
  • Microstep resolutions programmable via dip switch array, from full-step to 1/128 microstepping.
  • Optically isolated inputs reduce noise.
  • Alarm outputs for fault diagnosis.
  • Suitable for Nema23 and Nema24 sized closed-loop stepper motors.
  • Support Pulse/Direction, CW/CCW or RS232 control modes. (Step/Dir control recommended)
  • Overvoltage and overcurrent protection.

HBS57 Closed-loop Stepper Motor Driver Specifications:

  • Supply voltage: 20 to 50 VDC
  • Output current: Up to 5.0A Peak (Load Dependent)
  • Logic signal current: 7 to 20mA
  • Pulse input frequency: 200 kHz
  • Encoder Resolution (PPR): 1000
  • Isolation resistance: 500 MΩ
  • Operating temperature: 0 to 50 °C
  • Operating Humidity: 40 to 90%RH
  • Vibration: 5.9 m/s² Max
  • Weight: Approx. 300 g
  • Dimension: 118 x 75x 34 mm

HBS57 Stepper Motor Driver Engineering Drawings

Use the Closed-loop Stepper Motor and driver bundle to drive:

  • Nema23/24 compatible CNC machines
  • Laser Cutters
  • Plasma Cutters
  • Robotic Actuators
  • Automated Linear Actuators

Tips and Tricks

  • The closed-loop stepper motors are best powered by a 36V or 48V power supply for higher speed and greater torque.
  • For existing CNC builds, use these motors with 8x8mm jaw couplings for a drop-in replacement.
