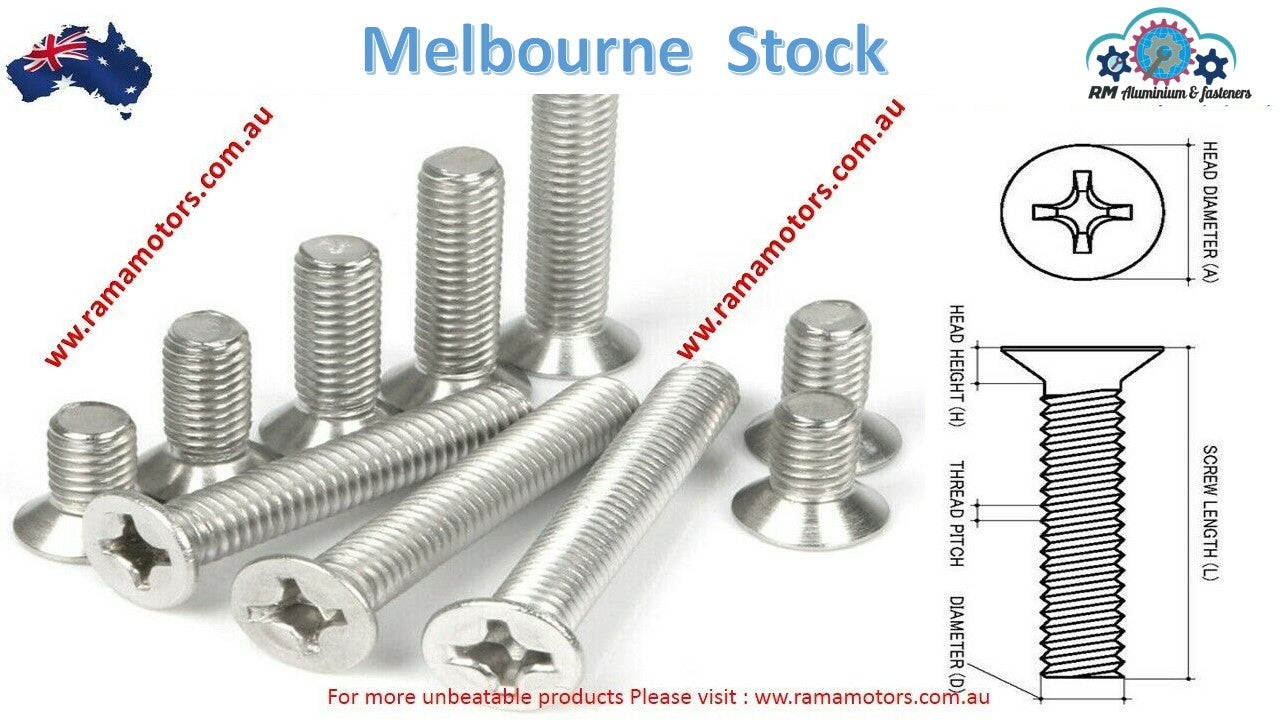

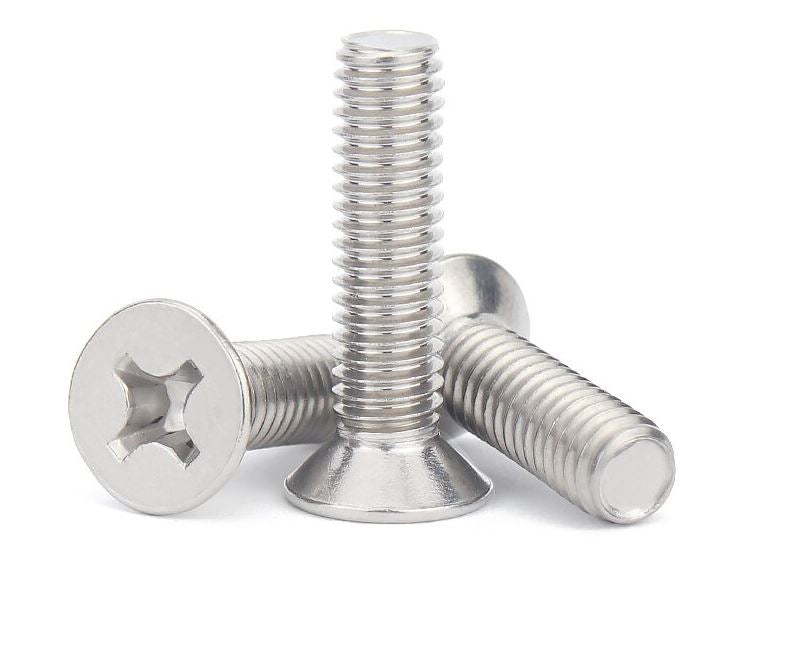

Pack 20pcs M4X8 Stainless Steel Phillip Countersunk Screws

In stock
SKU: RM6949-01
Regular price $4.12 AUD
  • Product Detail
    • Product Name: Cross Phillips Flat Screws   M4x8 ,304 Stainless Steel Screw Countersunk Head mechanical Blot
    • Material:304 Stainless steel
    • Screw head type: Phillips Flat
    • Price $/1pack of 20 pcs
  • Features100% new, high quality, excellent customer service

    Cross mechanical screws need to be used with nuts

    To use this screw, the product shall have the thread of the corresponding size

    Thread diameter(d)

    Screw pitch

    Herd diameter(dk)

    Head thickness(k)

    M1.2

    0.25mm

    2.06 mm

    0.6 mm

    M1.4

    0.3 mm

    2.52 mm

    0.72 mm

    M1.6

    0.35 mm

    2.86 mm

    1 mm

    M1.7

    0.35 mm

    3.2mm

    1.02 mm

    M2

    0.4 mm

    3.56 mm

    1.2 mm

    M2.5

    0.45 mm

    4.22 mm

    1.5 mm

    M3

    0.5 mm

    5.23 mm

    1.65 mm

    M3.5

    0.6 mm

    5.45 mm

    2.35 mm

    M4

    0.7 mm

    7.21 mm

    2.7 mm

    M5

    0.8 mm

    8.84 mm

    2.7 mm

    M6

    1 mm

    10.5 mm

    3.3 mm

    M8

    1.25 mm

    14.04 mm

    4.65 mm
