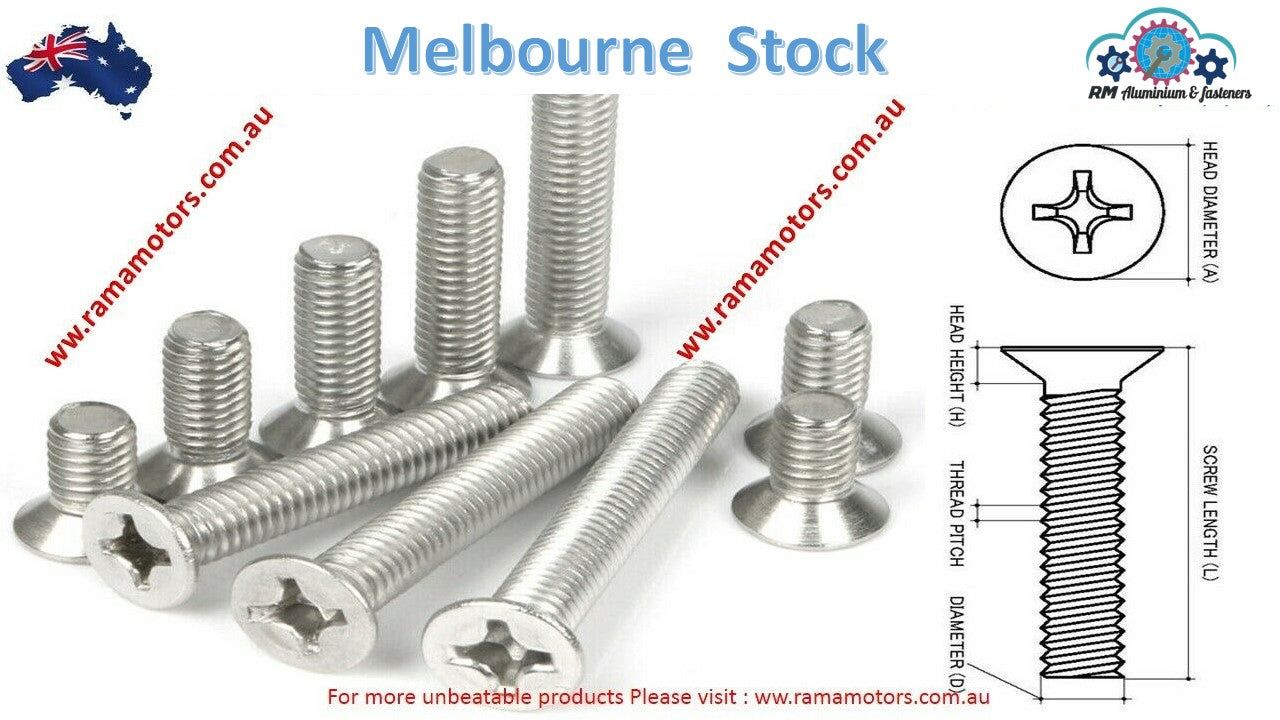

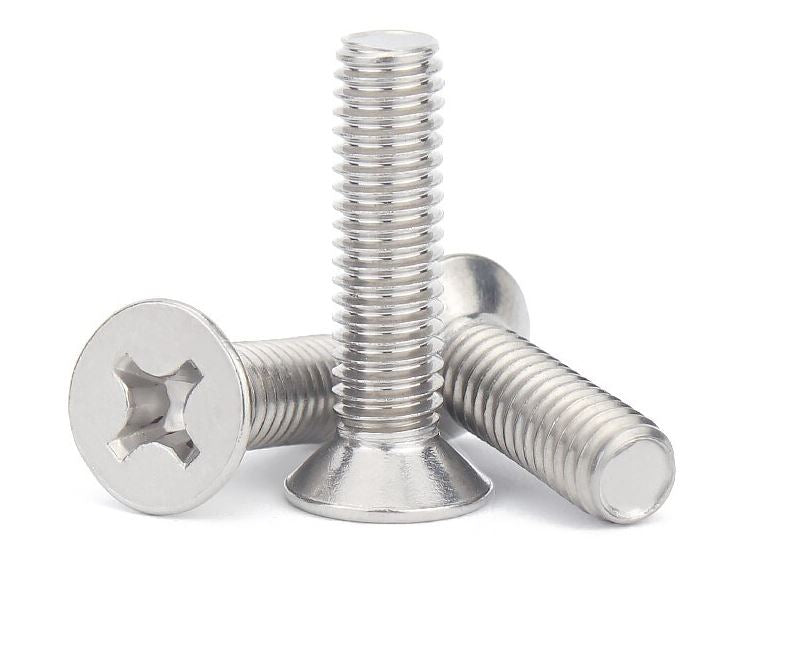

Pack 20pcs M5X6 Stainless Steel Phillip Countersunk Screws

• Product Name: Cross Phillips Flat Screws   M5x6mm ,304 Stainless Steel Screw Countersunk Head mechanical Blot
• Material:304 Stainless steel
• Screw head type: Phillips Flat
• Price $/1pack of 20 pcs

Cross mechanical screws need to be used with nuts

To use this screw, the product shall have the thread of the corresponding size

• Thread diameter(d)	Screw pitch	Herd diameter(dk)	Head thickness(k)
  M1.2	0.25mm	2.06 mm	0.6 mm
  M1.4	0.3 mm	2.52 mm	0.72 mm
  M1.6	0.35 mm	2.86 mm	1 mm
  M1.7	0.35 mm	3.2 mm	1.02 mm
  M2	0.4 mm	3.56 mm	1.2 mm
  M2.5	0.45 mm	4.22 mm	1.5 mm
  M3	0.5 mm	5.23 mm	1.65 mm
  M3.5	0.6 mm	5.45 mm	2.35 mm
  M4	0.7 mm	7.21 mm	2.7 mm
  M5	0.8 mm	8.84 mm	2.7 mm
  M6	1 mm	10.5 mm	3.3 mm
  M8	1.25 mm	14.04 mm	4.65 mm

•
