Pivot Assembly Kit – 30 Series

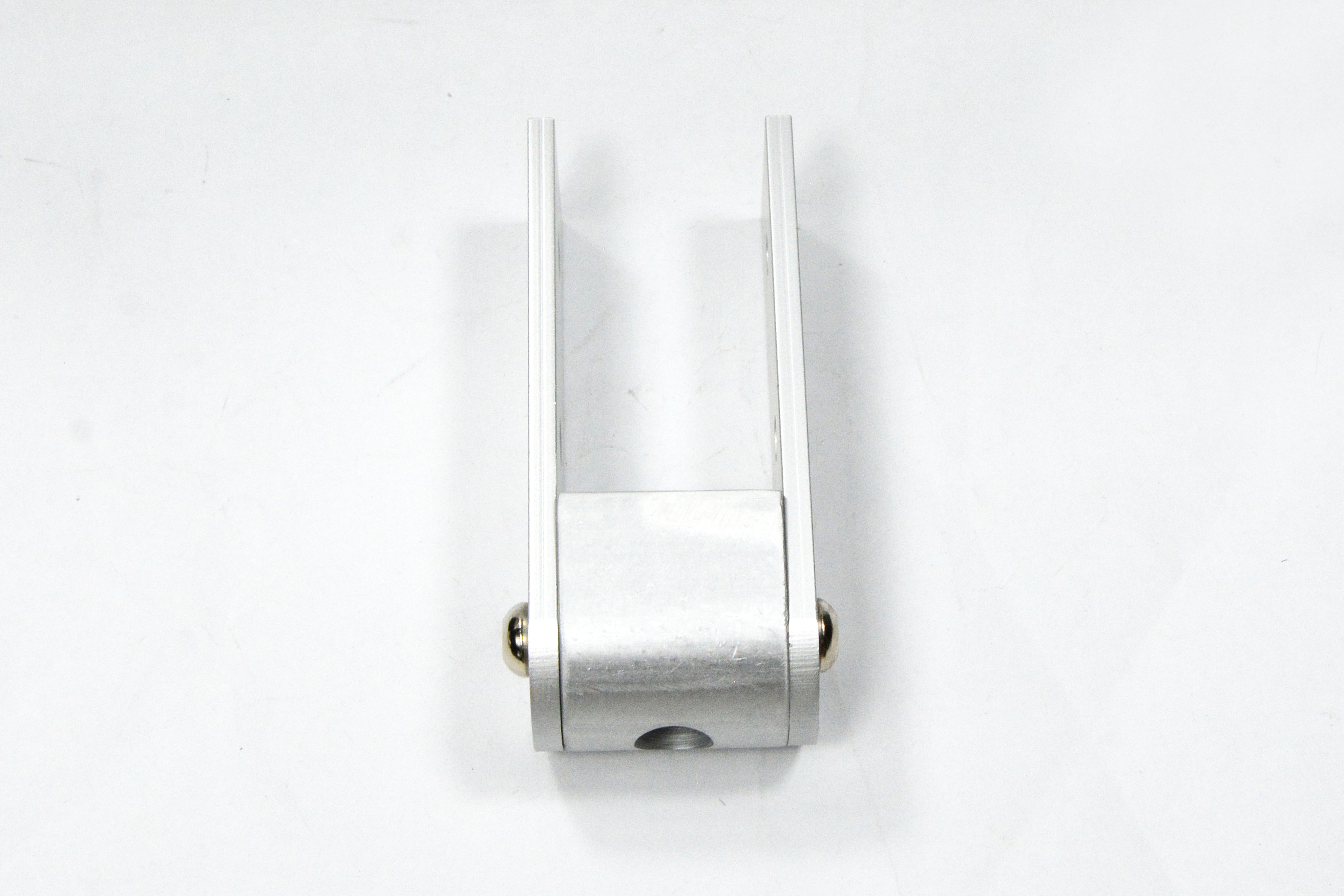

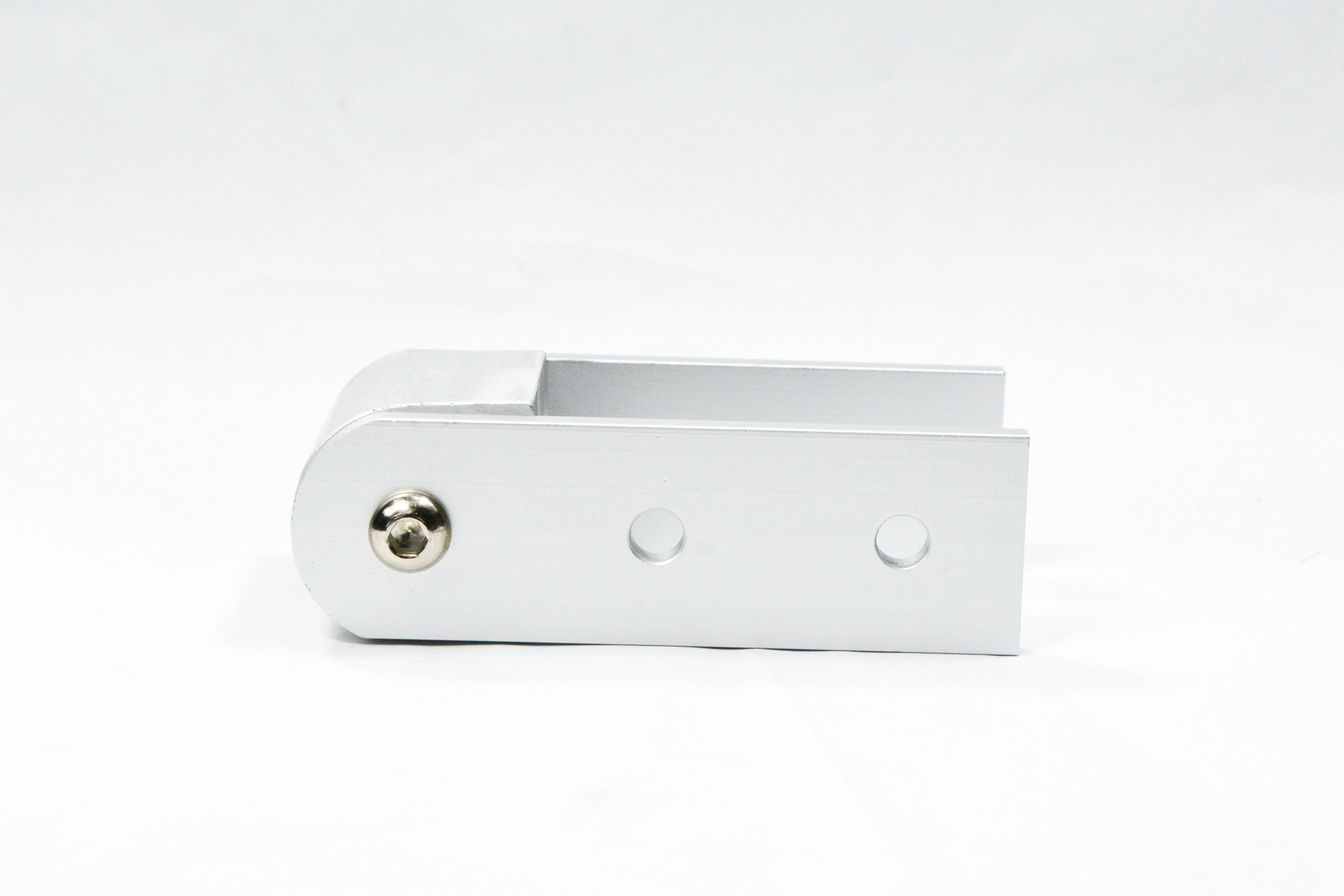

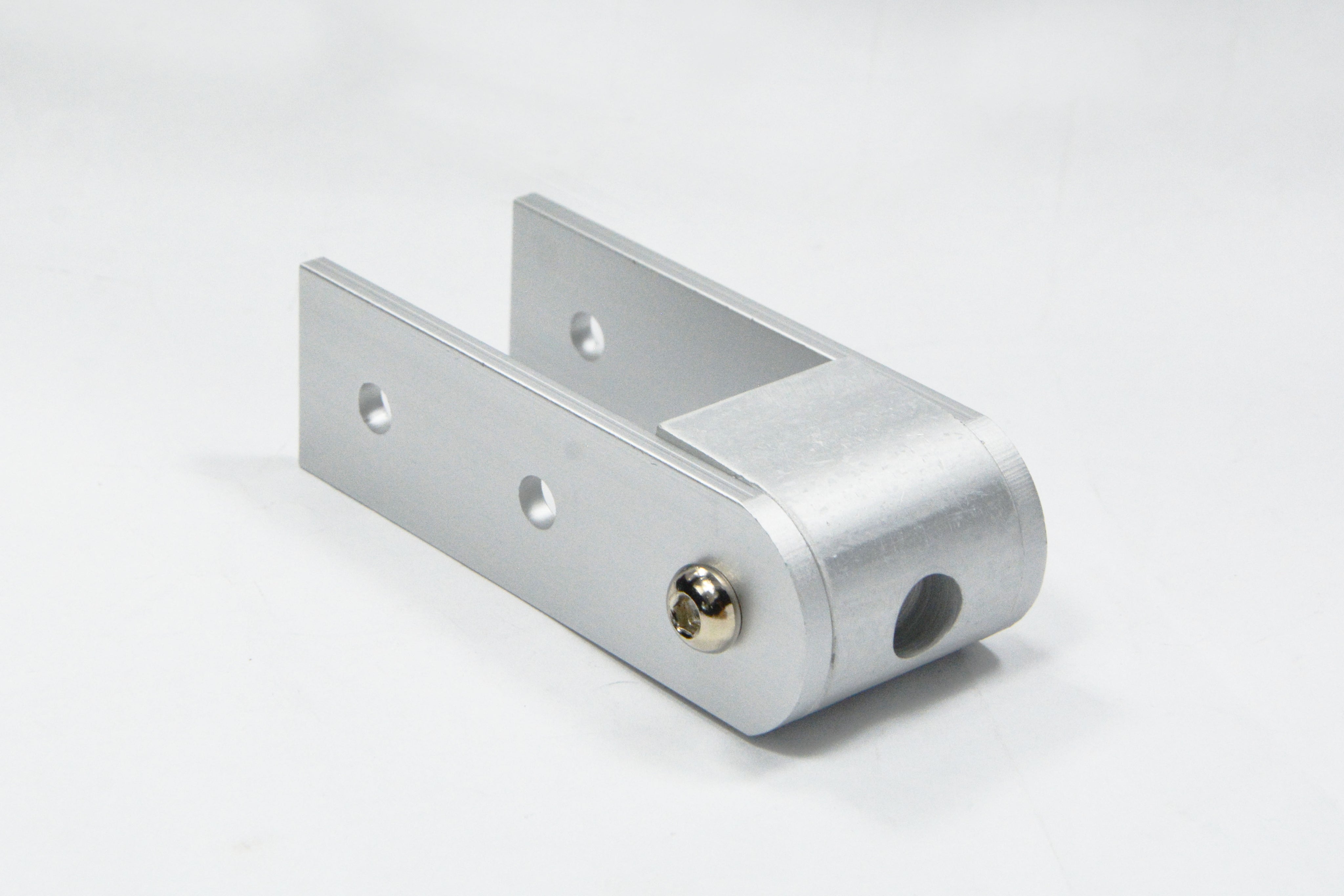

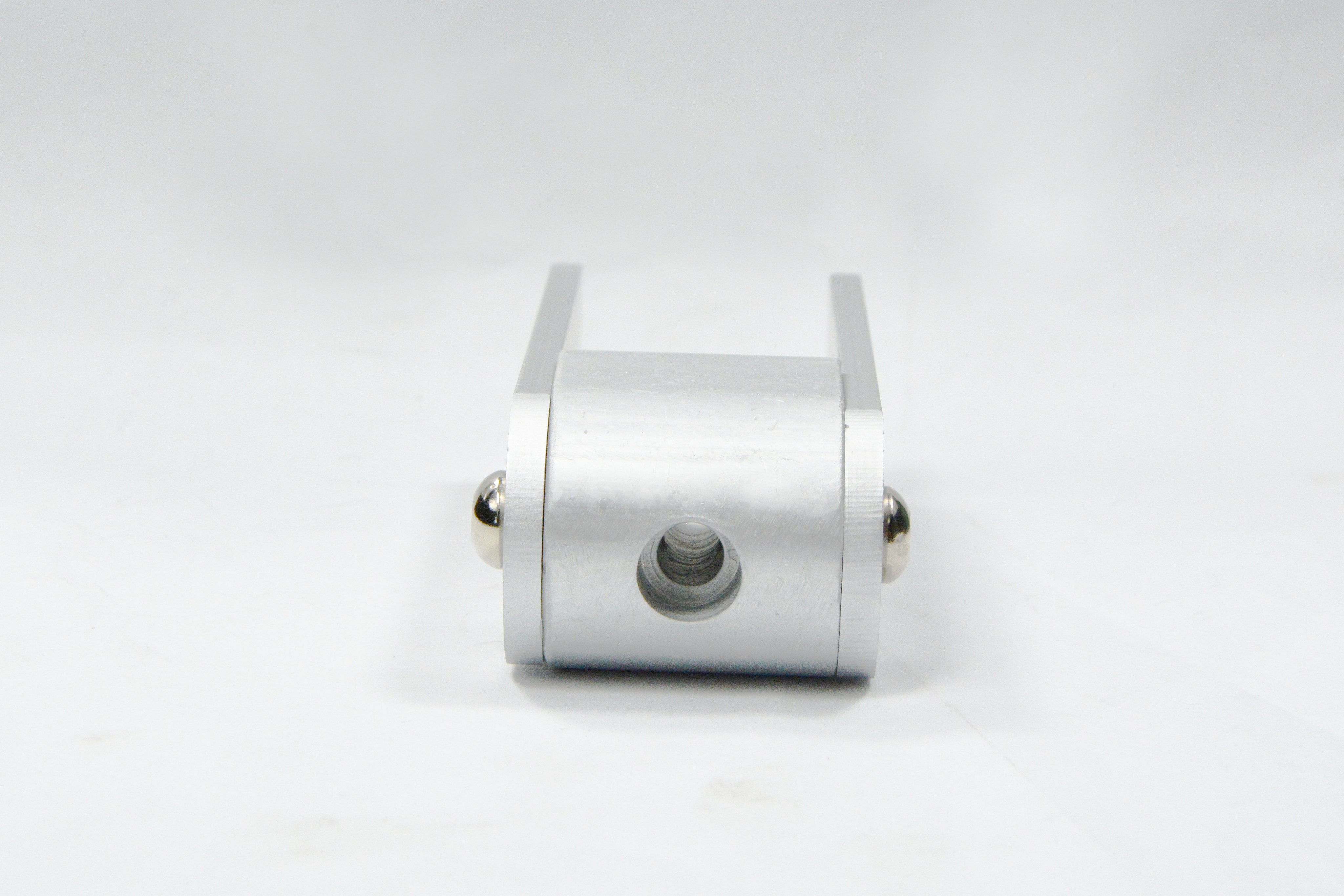

The Pivot Assembly Kit with Dual Straight Arms is a versatile solution for creating adjustable pivot connections within 30 Series T-Slot Aluminium Profiles. This kit is perfect for building custom pivoting systems that can adapt to different angles and lock positions, giving you full flexibility in your design.

Kit Contents

• 1 × Pivot Base (available in 0° or 90° variation)

• 2 × Straight Structural Pivot Arms (90 mm length)

• All necessary mounting hardware for a secure and reliable connection

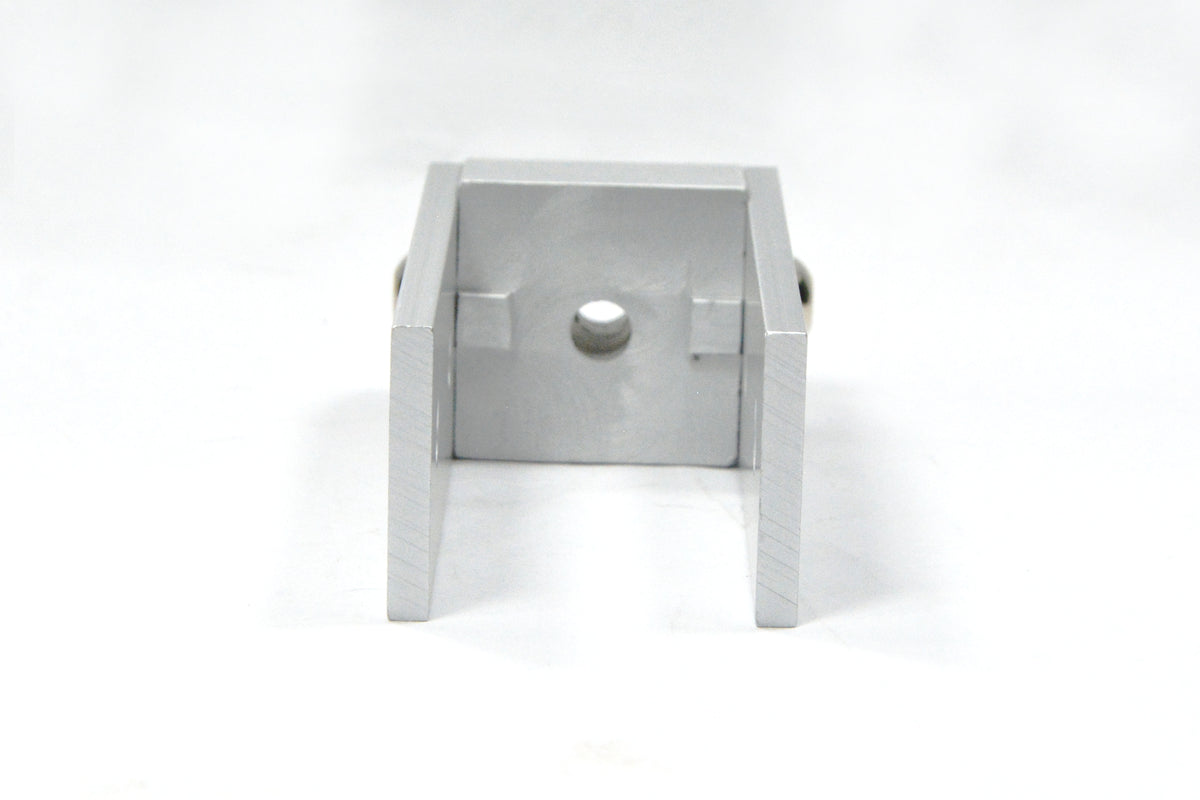

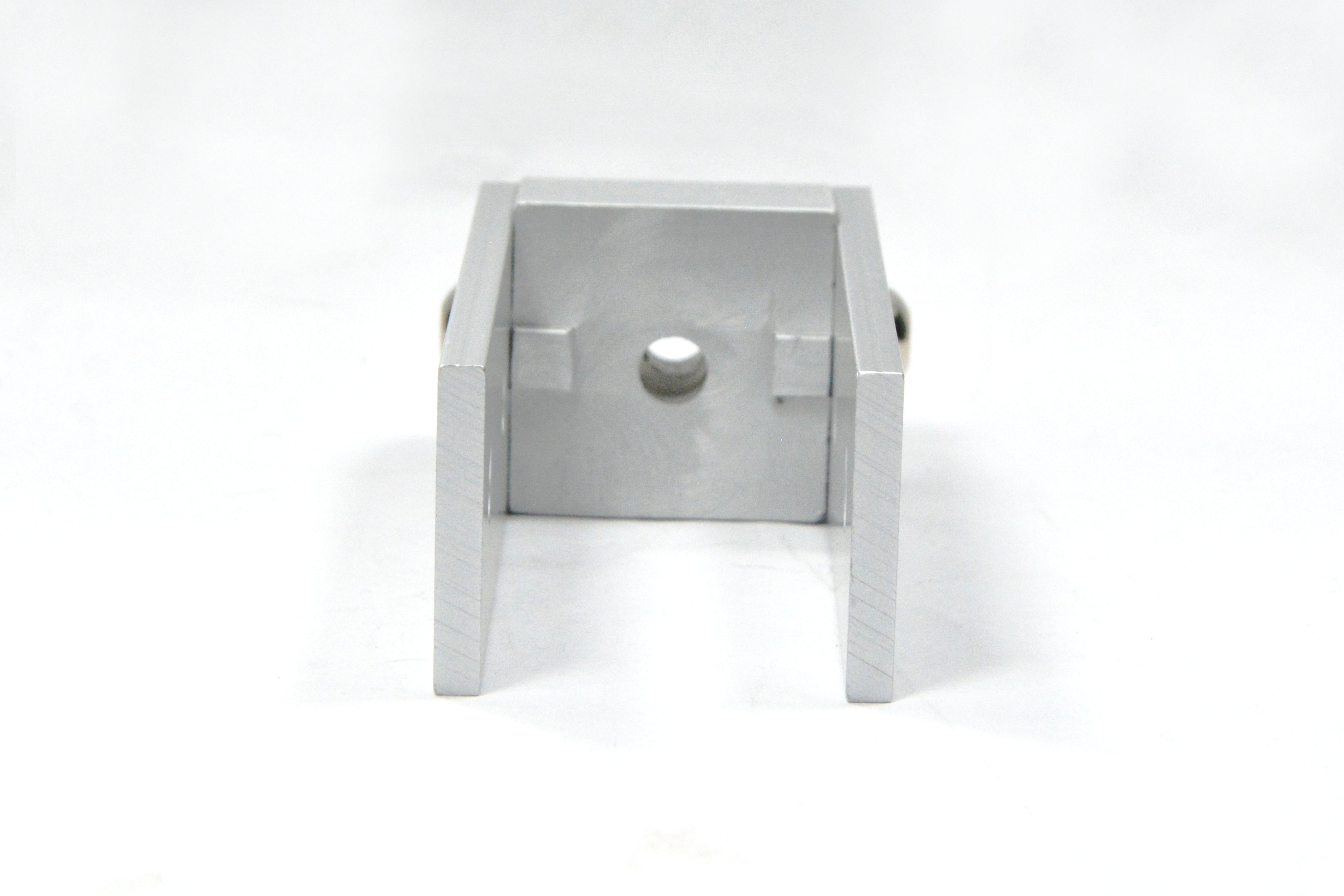

Note: The 0° and 90° Pivot Bases have pre-made locking notches aligned with the extrusion slots. They cannot be used interchangeably.

Key Features

• Material: High-strength 6063-T6 aluminium

• Finish: Silver anodized for enhanced corrosion resistance

• Mounting Hardware Included:

  • Base to Profile: 1 × M6 × 25 mm Cap Head Screw & T-Nut

  • Base to Arms: 2 × M6 × 12 mm Button Head Screws

• Adjustable pivot connection for rotation and lockable positions

• Easy installation with standard 30 Series T-slot hardware

Variations Available

• 0° Pivot Base + 2 × 90 mm Pivot Arms

• 90° Pivot Base + 2 × 90 mm Pivot Arms

Compatibility

• Designed for 30 Series T-Slot Aluminium Profiles

Package Includes

• 1 × Pivot Base for 30 Series

• 2 × Pivot Arms (90 mm)

• 1 × M6 × 12 mm BHCS

• 2 × M6 × 25 mm SHCS

• 1 × T-Nut
