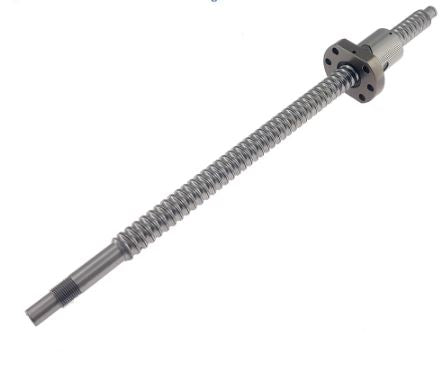

SFU1605 Lead screw with High precision lead screw nut 2000mm length

In stock
SKU: RM3278
Regular price $249.90 AUD

With up to 90% efficiency, ball screws are widely used in applications requiring high precision and repeatability which include but not limited to: robotics, CNC machines and linear actuators. Ball screws utilize ball bearings between the screw and nut, drastically reducing backlash.

Due to the high mechanical efficiency of ball screws, the torque required to operate a ball screw is approximately 30% of conventional screw-driven transmission.

Specifications

  • Ball Screw Length: 2000mm
  • Ball Screw Diameter: 16mm
  • Pitch: 5mm
  • Fabricating process: Rolled

SFU1605 Ball Screw Drawing

SFU1605 Ball Screw Dimensions


Ball Nut Drawing



Included

  • 2000mm SFU1605 lead  Screw and Nut
