NPN N/O INDUCTIVE PROXIMITY SWITCH SENSOR

In stock
SKU: RM4213
Regular price $6.00 USD
No reviews

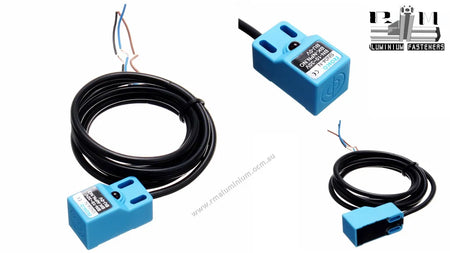

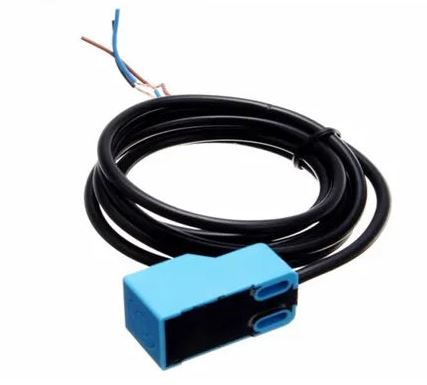

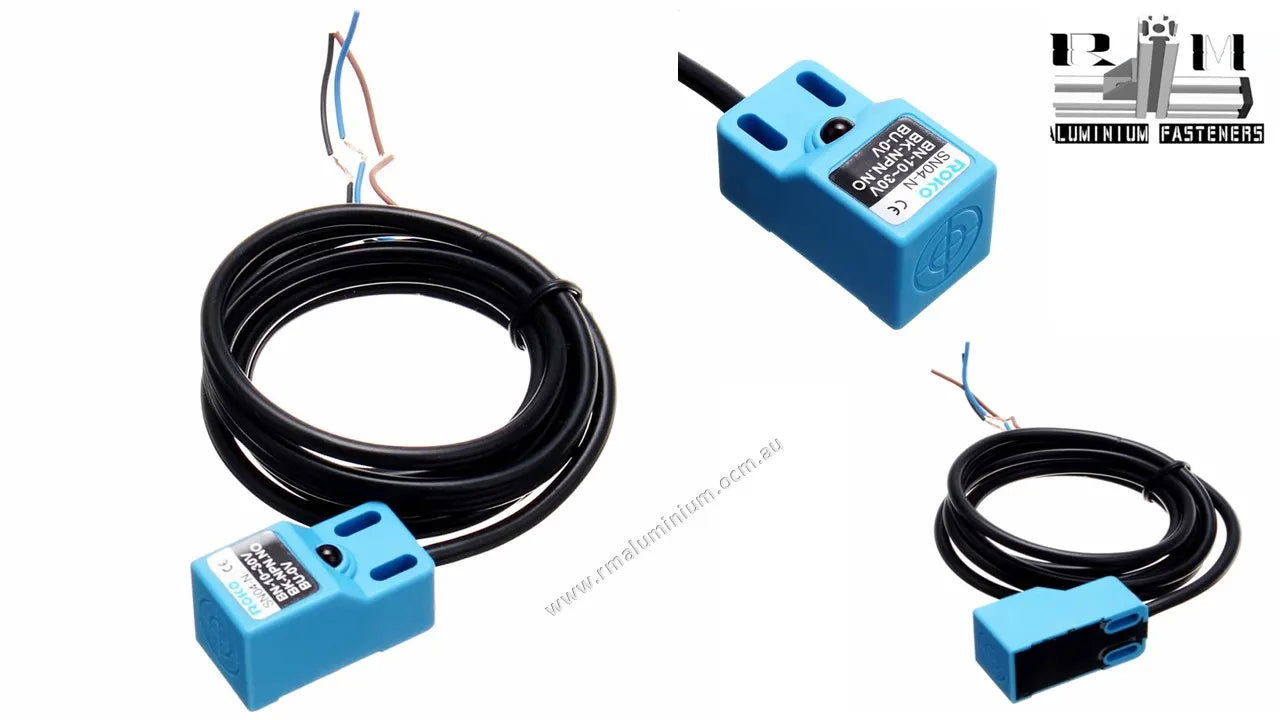

The SN04-N Inductive Proximity Switch Sensor can detect metal objects within 5mm.

The sensor acts as a switch by Signal output pin to 5V when there is a metal object sensed. The sensor has a 1-meter cable attached.

This is an NPN type.



SPECIFICATIONS:

  • Voltage Input: 10 – 30V DC
  • Digital Output: 0V or 5V
  • Type: NPN
  • Detection Distance: 5mm (max)
  • Current Consumption: 5 mA
  • Response Frequency: 500Hz
  • Cable Length: 1 meter
  • LED visual indication
  • Dimensions: 35mm x 18mm x 18mm (module)



CONTENTS:

  • 1 x SN04-N NPN Inductive Proximity Switch Sensor with 1-meter cable
  • 1X sensor bracket with screws and nuts
